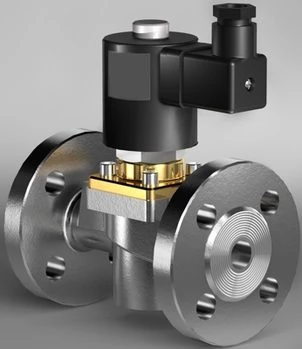

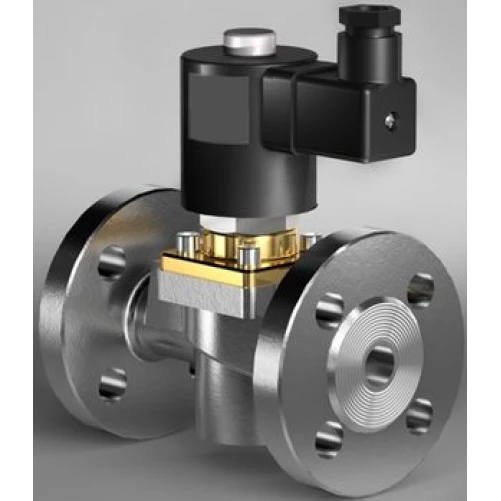

Solenoid valve with flange connection 2/2 way Type: BR37
- Force-pilot operated piston valve
- Operation: 2/2 way norm. Closed (Norm. Open optional)
- Applications: Clean and neutral liquids and gases
- Housing material: cast iron, cast steel, stainless steel.
- Internal metal parts: brass and stainless steel
- Sealing materials: NBR, FKM, EPDM, PTFE
- Diameter DN 65 ... DN 300 mm
- Pressure 0 - 40 bar
- Temperature: Liquids: -30 ° C ... + 80 ° C
Environment: -30 ° C ... + 50 ° C - Power supply: AC 24V, 110V, 230V - DC 12V, 24V
- Other supply voltages on request
- 96.42% Has a good to very good experience with SENSORS.NL
- Personalized customer service
- Spacious assortment with a wide range of top brands
- Need an additional discount for quantities? Please contact us
2/2-way solenoid valves. Force-pilot driven piston design. No differential pressure is required for operation. NC standard function, NO (on request). Body materials Stainless steel, cast iron, cast steel. Maximum pressures up to 40 bar. DN65 ... DN300 mm passages, flange connections.
| Weight | 1 kg |
|---|---|
| Brand | GSR Ventiltechnik |
