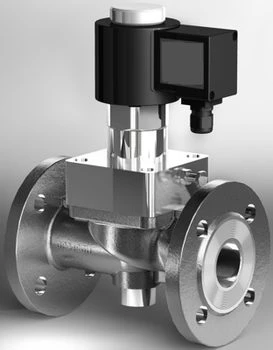

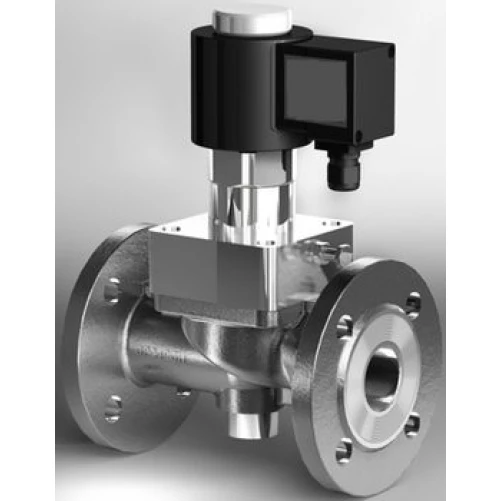

Solenoid valve with flange connection 2/2 way Type: BR24

  • Force-pilot operated piston valve
  • Operation: 2/2 way norm. Closed (Norm. Open optional)
  • Applications: Clean and neutral liquids and gases
  • Housing material: cast iron, cast steel, stainless steel.
  • Internal metal parts: brass and stainless steel
  • Sealing materials: NBR, FKM, EPDM, PTFE
  • Diameter DN 65 ... DN 300 mm
  • Pressure 0 - 40 bar
  • Temperature: Liquids: -30 ° C ... + 80 ° C
    Environment: -30 ° C ... + 50 ° C
  • Power supply: AC 24V, 110V, 230V - DC 12V, 24V
  • Other supply voltages on request
