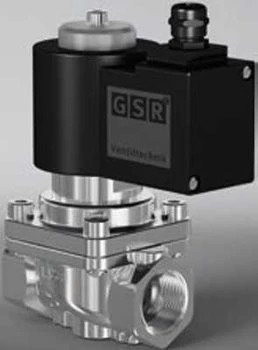

Solenoid valve 2/2 way Type: BR91K
- Magnetic valve operated by Force Pilot
- Operation: 2/2 way standard. Closed
- Applications: Clean and neutral liquids and gases
- Housing material: brass, stainless steel.
- Internal metal parts: brass, stainless steel
- Sealing materials: PTFE
- Nominal diameter DN13, 25, 40, 50 mm
- Pressure 0-16 bar
- Temperature: Liquids: -196 ° C ... + 80 ° C
- Environment: -55 ° C ... + 50 ° C
- Power supply: AC 24V, 110V, 230V - DC 12V, 24V
- Other supply voltages on request
- Connections: 1/4", 3/8", 1/2", 3/4", 1", 1" 1/4, 1" 1/2, 2" threads
- 96.42% Has a good to very good experience with SENSORS.NL
- Personalized customer service
- Spacious assortment with a wide range of top brands
- Need an additional discount for quantities? Please contact us
2/2 way solenoid valve controlled for liquids with very low temperature up to -196 ° C. Direct actuation without necessary pressure between inlet and outlet. Operation Norm. Closed. Pressure 0 ... 16 bar. Passages DN13, 25, 40, 50 mm. Threaded connections 1/4", 3/8", 1/2", 3/4", 1", 1" 1/4, 1" 1/2, 2"
| Weight | 1 kg |
|---|---|
| Brand | GSR Ventiltechnik |
