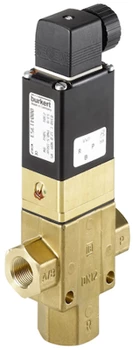

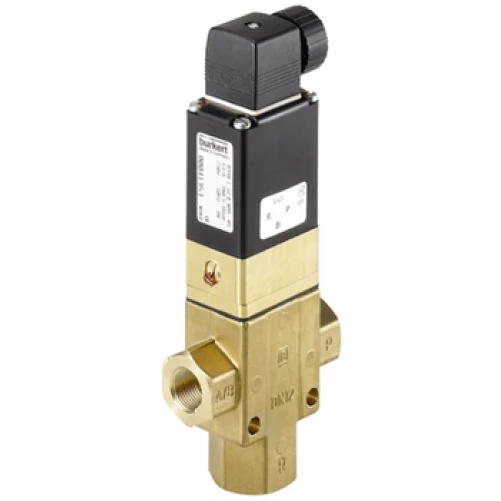

Solenoid valve 3/2 way Type: 3040
On backorder, please contact us for the expected delivery date.
- Fluids: compressed air, water, hydraulic oil
- Nominal diameter: DN 8 - 40 mm
- Body material Brass
- NBR sealing material
- Average temperature from 0 to +90 ° C
- Max. Ambient temperature +55°C
- Viscosity Max. 21 mm2 / sec.
- Voltage tolerance ± 10%
- Electrical connection Cable plug Ø 7 mm (included in delivery)
- Ex version only with terminal box or 3 m cable
- Protection class IP65 with cable plug or terminal block
- Installation If necessary, preferably with actuator in vertical position
- Excellent rating: 96.42% had a good to very good experience
- Personal customer service and advice
- Extra discount possible for large quantities: Contact us
Description
Servo-controlled 3/2-way piston valve. A minimum differential pressure is required to operate the valve. A pilot valve uses a 3/2-way anchor valve with fluid separation (Type 0331) that requires no maintenance. The function of the valve can be easily switched from NC to NO by 180° rotation of the 3/2 way pilot. The 0340 valve is equipped with a manual control, convenient for commissioning and testing. To meet power requirements, all coils can be supplied with electronic power reduction or in impulse configuration. The switching state can be signaled via position feedback in the form of a binary signal or NAMUR. In combination with a connector according to DIN EN 17301-803 form A, the valves meet the requirements of protection degree IP65 / 67. Nominal diameter up to DN40.
Extra information
| Weight | 1 kg |
|---|---|
| Brand | Bürkert |
