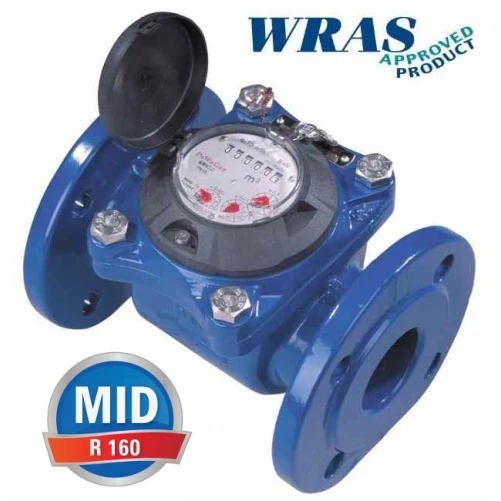

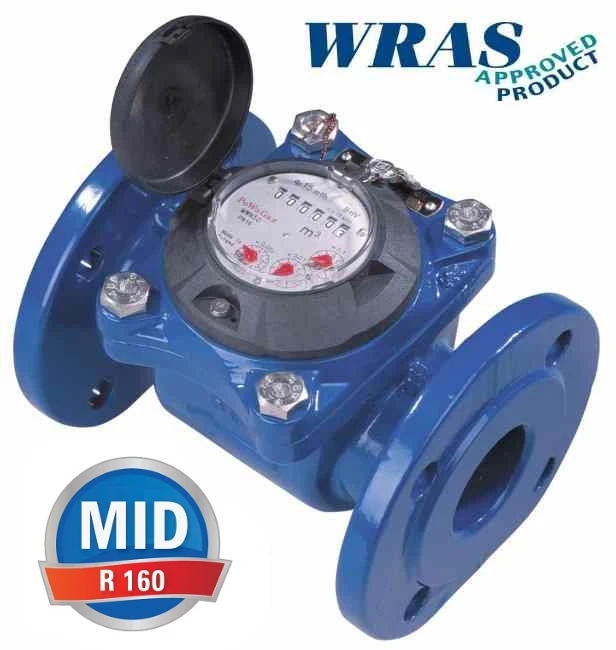

Woltman Pulsed Cold Water Meter / MWN-80-NK-100 (DN80-PN16 flanged)
€648,50 (€784,69 incl. VAT)
- Q3 100m3/hr, Q4 125m3/hr, Q1 0.625m3/hr
- Pulsed K=100
- Cast Iron Body - epoxy coated
- Dry dial (frost resistant) max 50°C 16bar
- DN80 PN16 flanged connections
- MID MI-001/WRAS approved
- Suitable for secondary billing/sub metering
- Installation Horizontal or Vertical (flow upwards)
- See TDS for detailed specification
Available on backorder
- 96.42% Has a good to very good experience with SENSORS.NL
- Personalized customer service
- Spacious assortment with a wide range of top brands
- Need an additional discount for quantities? Please contact us
- Flanged PN16
- Working temperature - 50°C
- Working Pressure / 16bar
- Pulsed output - K=10L
- Freely adjustable rotary counter dial
- Magnetic clutch
- Removable measuring insert in covered casing
- Possibility of remote counting of water volume and flow rate (data according to a separate card)
- Possibility of electronic check-up
- Conformity with the standards ISO4064, BS5728, ISO/DIS-1038For measuring the flow and volume of the cold water with a temperature to 30°C or hot water with a temperature to 130°C in the closed-circuit systems with the full flow of the flux with maximum working pressure up to 16 Bar (PN16) with flange drilling option up to PN25 (2.5 MPa). Suitable for installation in horizontal, vertical and inclined pipelines with the counter directed upwards or sidewards in the transitional positions (H-V) in the multi-family houses and manufacturing plants.
