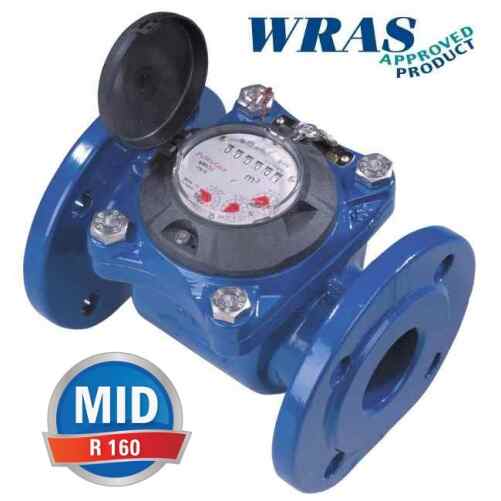

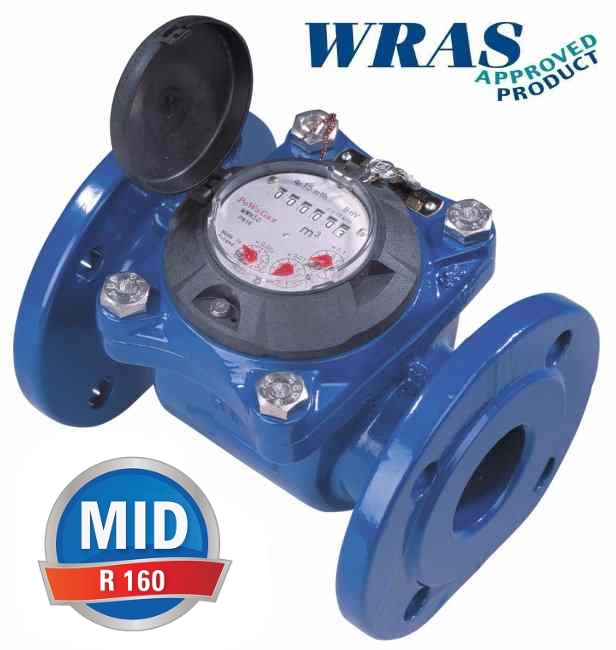

Woltman Pulsed Cold Water Meter / MWN-80-NK-100 (DN80-PN16 flanged)

Name: Woltman Pulsed Cold Water Meter / MWN-80-NK-100 (DN80-PN16 flanged)
SKU: MWN-80-NK-100
Availability: PreOrder

€648,50 (€784,69 incl. BTW)

Beschikbaar via nabestelling

Artikelnummer: MWN-80-NK-100 Categorieën: Sensors.nl, Watermeters Tags: MWN-80-NK-100, Woltman Pulsed Cold Water Meter

Flanged PN16
Working temperature – 50°C
Working Pressure / 16bar
Pulsed output – K=10L
Freely adjustable rotary counter dial
Magnetic clutch
Removable measuring insert in covered casing
Possibility of remote counting of water volume and flow rate (data according to a separate card)
Possibility of electronic check-up
Conformity with the standards ISO4064, BS5728, ISO/DIS-1038For measuring the flow and volume of the cold water with a temperature to 30°C or hot water with a temperature to 130°C in the closed-circuit systems with the full flow of the flux with maximum working pressure up to 16 Bar (PN16) with flange drilling option up to PN25 (2.5 MPa). Suitable for installation in horizontal, vertical and inclined pipelines with the counter directed upwards or sidewards in the transitional positions (H-V) in the multi-family houses and manufacturing plants.
