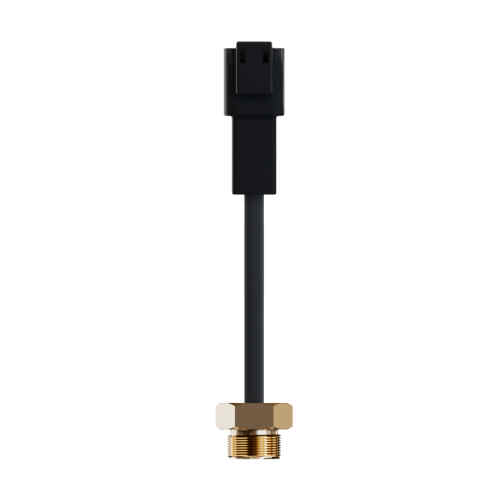

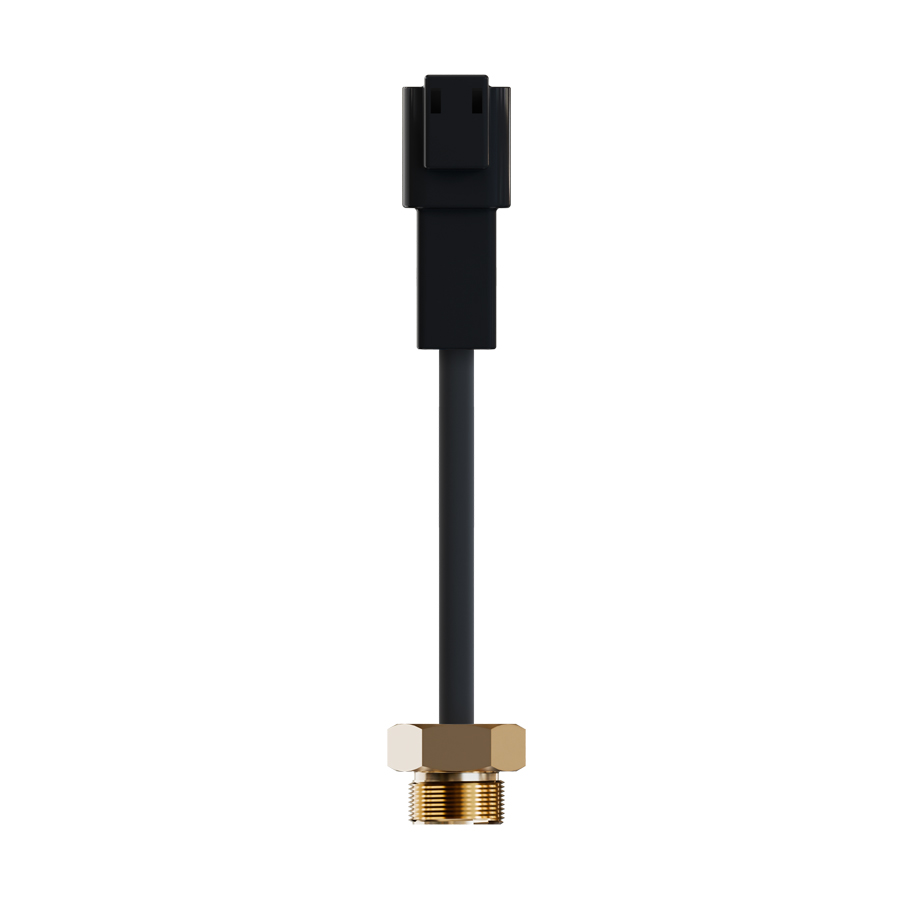

TBG – Compact temperature switch

On backorder, please contact us for the expected delivery date.

Product information and datasheets →

Why buy from Sensors.nl:

Excellent rating: 96.42% had a good to very good experience

Personal customer service and advice

Extra discount possible for large quantities: Contact us

Switch rating	120 Vac /15 A (resistive) 240 Vac /10 A (resistive) 12 Vdc /10 A (resistive) 24 Vdc /5 A (resistive)
Max. temperature	125°C
Environment temperature	-20°C to +90°C
Accuracy	±5°C
Max. differential DT	16°C
Operations	100.000
Max. static pressure	100 bar
Protection	IP67 see page 1 of the catalogue
Tightening torque	30 Nm
