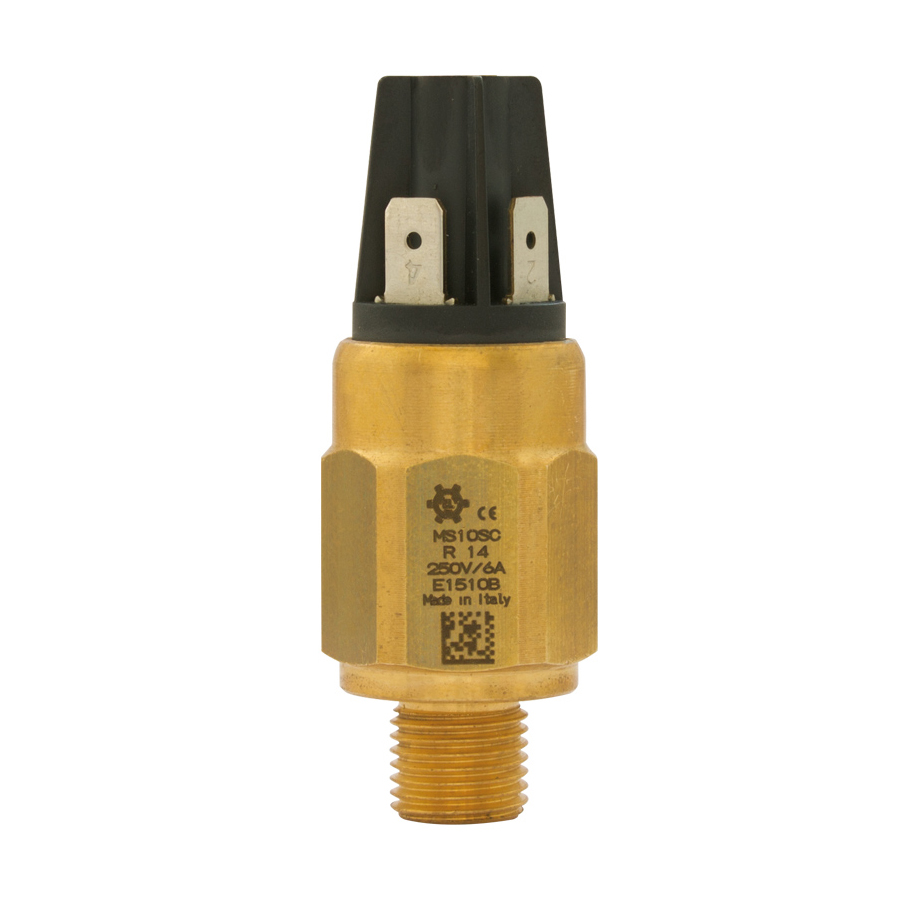

MS-PS – Adjustable pressure controllers with SPDT contacts

On backorder, please contact us for the expected delivery date.

Why buy from Sensors.nl:

Switch rating	6 (2) A / 250 Vac – 2 (1) / 24 Vdc
Electrical connection	Faston 6.3 x 0.8
Adjustment range	0.2 – 2 bar – 1 – 10 bar – 10 – 50 bar – 10 – 100 bar – 30 – 150 bar – 50 – 300 bar
Max. static pressure	300 bar, 600 bar (according to possible pressure range and body material)
Temperature tange	-30 °C +140 °C (according to diaphragm/seal material)
Contact	SPDT
Body material	Brass – zinc plated steel – AISI 316
Diaphragm/ Seal material	FKM – Silicone – HNBR – Neoprene – EPDM – Stainless steel
Threads	G1/8 BSPT – G1/4 BSPT – M10 x 1 – ecc.
Protection	IP00 without cap. – IP54 with CAP 16 – IP65 with CAP 13
Mechanical life	10⁶ operations
Dimensions	Body Ch 24 – Max. high60
Certification	CE
Options	Snubber for pressure picks – Set-point rising and falling – Gold-plated contacts for low current – Degreased for oxygen – Tested for applications with gas
