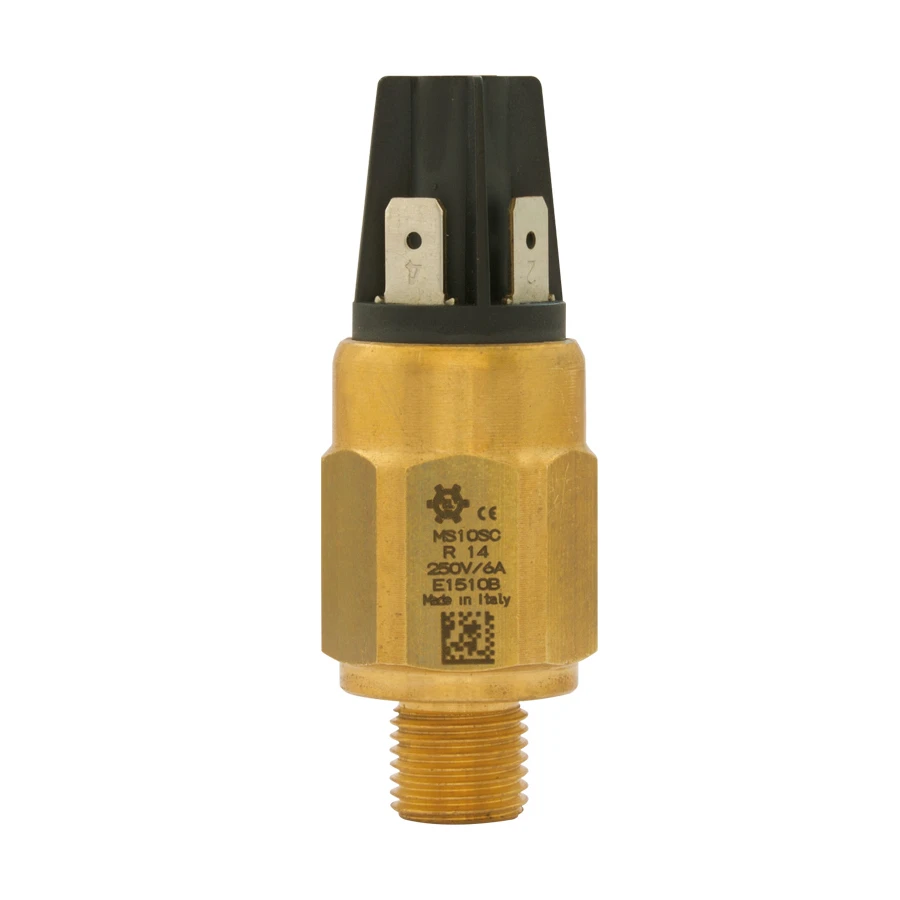

MS-PS – Adjustable pressure controllers with SPDT contacts
- Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
- Persoonlijke klantenservice en advies
- Extra korting bij grote aantallen mogelijk: Neem contact op
Descrizione
| Valutazione dell'interruttore | 6 (2) A / 250 Vac – 2 (1) / 24 Vdc |
| Collegamento elettrico | Faston 6.3 x 0.8 |
| Adjustment range | 0.2 – 2 bar – 1 – 10 bar – 10 – 50 bar – 10 – 100 bar – 30 – 150 bar – 50 – 300 bar |
| Max. static pressure | 300 bar, 600 bar (according to possible pressure range and body material) |
| Temperature tange | -30 °C +140 °C (according to diaphragm/seal material) |
| Contatto | SPDT |
| Materiale del corpo | Brass – zinc plated steel – AISI 316 |
| Diaphragm/ Seal material | FKM – Silicone – HNBR – Neoprene – EPDM – Stainless steel |
| Threads | G1/8 BSPT – G1/4 BSPT – M10 x 1 – ecc. |
| Protezione | IP00 without cap. – IP54 with CAP 16 – IP65 with CAP 13 |
| Mechanical life | 106 operations |
| Dimensioni | Body Ch 24 – Max. high60 |
| Certification | CE |
| Opzioni | Snubber for pressure picks – Set-point rising and falling – Gold-plated contacts for low current – Degreased for oxygen – Tested for applications with gas |
