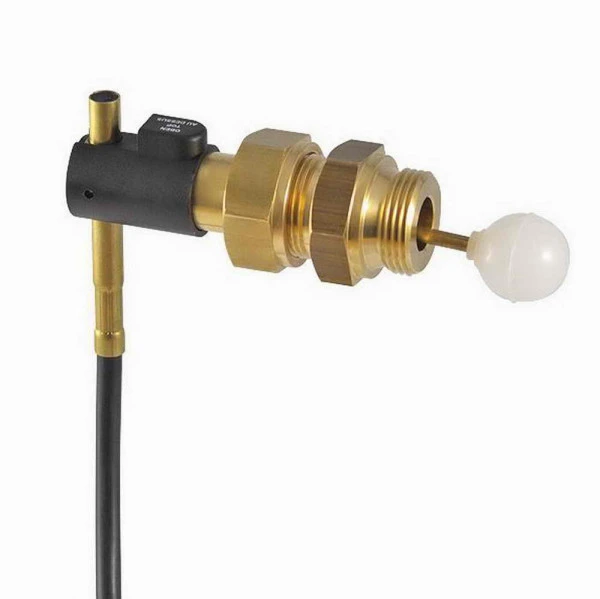

SIKA level switch Type VH600M - Brass version

€232,40 (€281,20 incl. VAT)

VH600M01111R31 || 90261089 || THE
Level switch VH 600 M
Brass, PVDF float, SP-S1181
Screwed plug 3/4″ BSP male, brass
For lateral installation, PN 25
Max. medium temperature 110°C
Output potential free contact
1500 mm of PVC cable

96.42% Has a good to very good experience with SENSORS.NL
Personalized customer service
Spacious assortment with a wide range of top brands
Need an additional discount for quantities? Please contact us

SKU: VH600M01111R31 || 90261089 || THE Category: Mechanical Level Switches

Switching function Contact opens on falling level (reversal possible)
Nominal pressure PN 25
Temperature ranges
Medium: max. 110 °C
Environment: -25 ... 80 ° C
Cable connection 1500 mm
Max. switching current 1 A
Max. switching voltage 230 VAC, 48 VDC
Max power 26 VA, 20 W.
Degree of protection EN 60529 IP65

5/5 - (1 vote)

Weight	1 kg
Brand	SIKA
