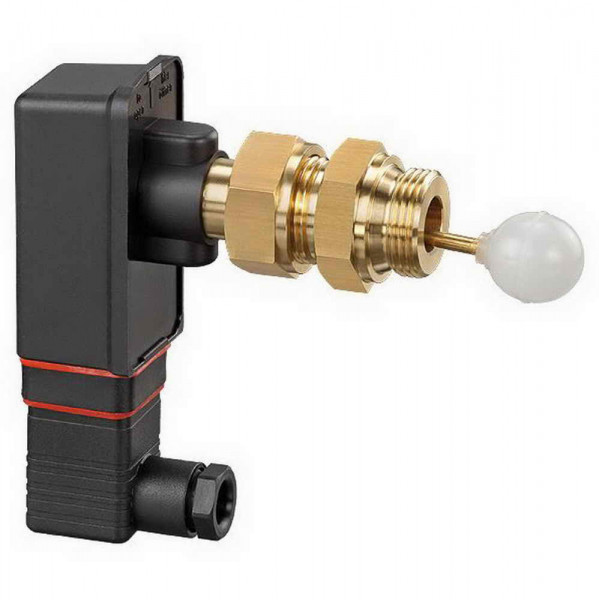

Level switch Type VHS00M - Brass version

€224,86 (€272,08 incl. VAT)

Housing brass
Float PVDF, SP-3600
Connection: 3/4″ BSP male, brass
PN25
Max. medium temp. 110 °C
Output potential-free contact
Connector EN175301-803-A

Available on backorder

96.42% Has a good to very good experience with SENSORS.NL
Personalized customer service
Spacious assortment with a wide range of top brands
Need an additional discount for quantities? Please contact us

SKU: VHS00M01171R31 Categories: Mechanical Level Switches, Sensors.nl, Sika

Switching function Contact opens on falling level (reversal possible)
Nominal pressure PN 25
Temperature ranges
Medium: max. 110 °C
Environment: -25 ... 80 ° C
Electrical connection Plug connection EN 175301-803-A incl. cable connection
Max. switching current 1 A
Max. switching voltage 230 VAC, 48 VDC
Max power 26 VA, 20 W.
Degree of protection EN 60529 IP65

Rate this product

Weight	1 kg
Brand	SIKA

Product Documents
