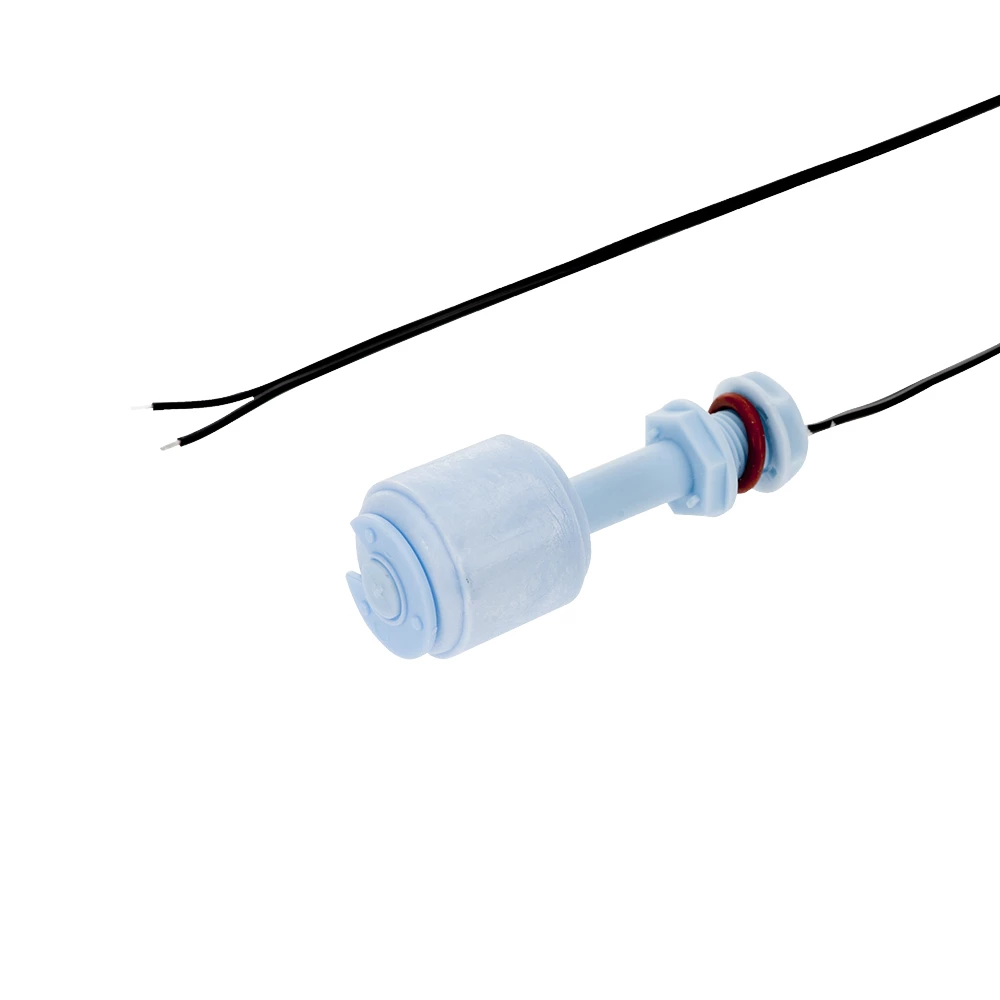

H-Tronic plastic float switch S1 connection cable 10 meters
€28,71 (€34,74 incl. VAT)
- Connection cable: 10m PVC wire
- Contact: (NC or NO contact)
- Switching hysteresis approx. 1.3 mm
- Temperature range: -10 to +60 ° C
- Max. Switching voltage: <25V AC / 0.4A; <60 V DC / 0.15 A
- max switching power: 10 W
- Switching status (on): water level approx. 40 mm
- Switching status (off): water level approx. 38 mm
- Dimensions: 68 x 24 mm
Available on backorder
- 96.42% Has a good to very good experience with SENSORS.NL
- Personalized customer service
- Spacious assortment with a wide range of top brands
- Need an additional discount for quantities? Please contact us
The S1 float switch is compatible with the entire H-TRONIC WPS series. Due to its small size, the S1 can also be used in hard-to-reach areas and ensures trouble-free level switching. The float switch S1 is made of fiberglass-reinforced polypropylene and is suitable for monitoring liquid levels in non-aggressive media (e.g. Water). The switching process is triggered by the floating float and the integrated magnetic switch. Depending on the installation of the float switch, a break or make contact can be realized.
