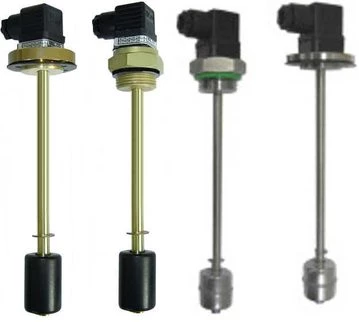

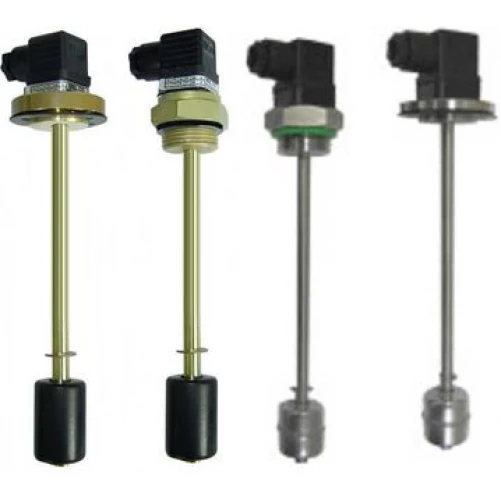

Level switch type SINGOL S1 / S1S with one contact

Technical Specifications:

Standard float switch, one contact type
S1 - Brass steel and connetction, Spansil float
S1S - stainless steel stem, connection and float
1 ″ thread or flange connection process connection
100 to 500 mm. length (step 50 mm.)
Max. Working pressure up to 20 bar
Max temperature 105°C
Reed switch SPST or SPDT
Integrated temperature switch (upon request)
Electrical connection DIN-43650A
Protection class IP65

Productinformatie en datasheets →

Waarom kopen bij Sensors.nl:

Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
Persoonlijke klantenservice en advies
Extra korting bij grote aantallen mogelijk: Neem contact op

Add to quote

SKU: SINGOL S1 / S1S with one contact Categories: Mechanical Level Switches, Sensors.nl

Beschrijving

These items are on request!

The operating principle of these instruments is based on the magnetic actuation of a reed contact, placed in the measuring rod, by a float. The only moving element is the float, which moves along the measuring rod by hydrostatic thrust; this guarantees extreme robustness and limited need for maintenance. Threaded or flange connections. Versions Brass or AISI.
