These items are on request!
The operating principle of these instruments is based on the magnetic drive of one or more reed contacts, placed in the measuring rod, by one or more floats. The only moving element is the float which moves along the measuring rod by hydrostatic thrust; this guarantees extreme robustness and limited need for maintenance. Up to 6 control points. Threaded or flange connections. Brass rod and body, Spansil floats. On request ASI versions (Multipoint S version), ATEX, integrated temperature sensor or thermostat.

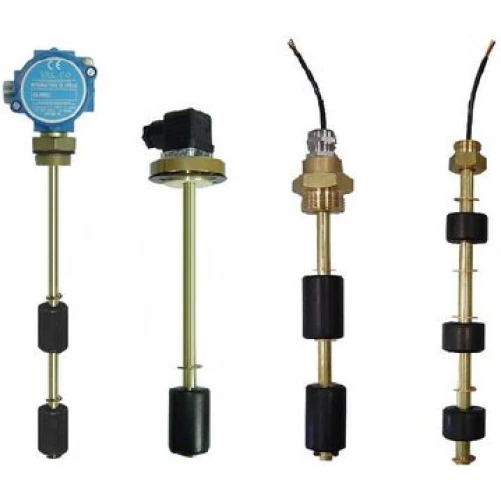

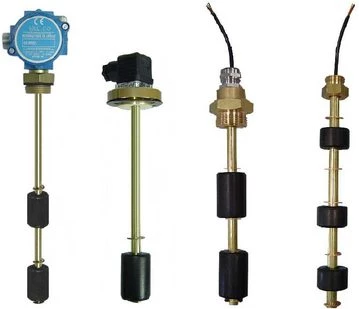

Level switch type MULTIPOINT-O / 1-6 control points
Technical Specifications:
- From 1 to 6 intervention points
- Length up to 6 m.
- Thread - flange process connections
- Materials: brass, spansil
- Maximum pressure up to 20 bar
- Standard operating temperature up to 105°C
- Versions up to 120 ° C on request
- IP65 minimum degree of protection
- Option: integrated temperature sensor PT - PTC - NTC or Thermostat
- ATEX versions see Multipoint E-series - Multipoint I
