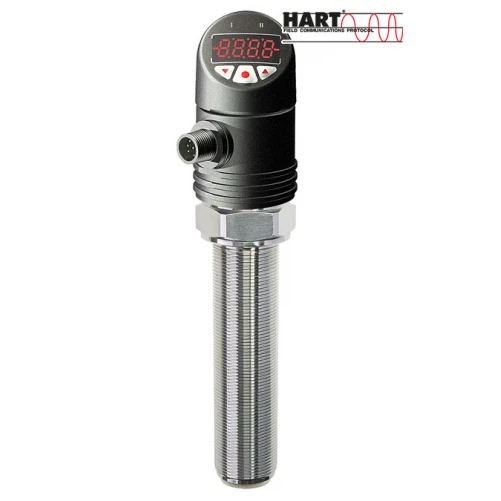

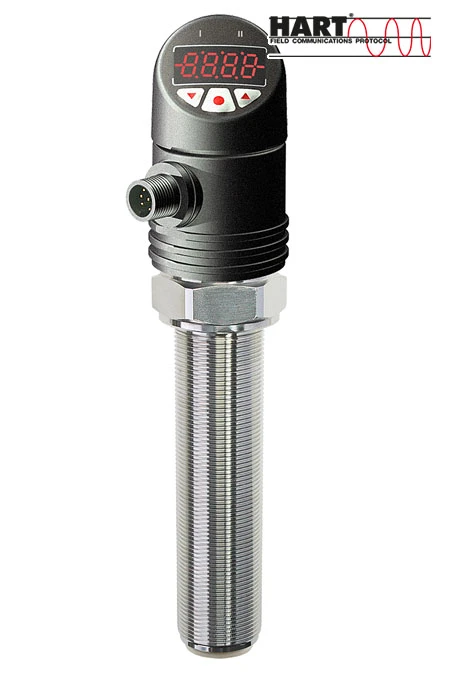

Müller Ultrasonic level sensor (HART) type: MEUS

Müller Ultrasonic level sensor (HART) type: MEUS

€773,12 (€935,48 incl. VAT)

On backorder, please contact us for the expected delivery date.

technical characteristics

Input: Ultrasonic echo
Range: 300 ... 3500 mm, 200 ... 2000 mm
Output: 4 ... 20 mA (HART), 3-wire system
Power supply: 24 VDC
Process connection: M30x1.5, M18x1
Electrical connection: M12x1, 8-pin
Temperature range: -15 ... + 70 ° C
Limit contacts: 2 electronic (PNP)
Sensor tube material: stainless steel, option: plastic

Product information and datasheets →

Measuring range

Clear

Why buy from Sensors.nl:

Excellent rating: 96.42% had a good to very good experience
Personal customer service and advice
Extra discount possible for large quantities: Contact us

SKU: N/B Categories: Müller IE, Level measurement, Ultrasonic & Radar Tags: ultrasonic level measurement, Ultrasonic level sensor, update2026

Extra information

Weight	1 kg
Brand	Müller IE
Measuring range	30...400 mm (M18x1), 300...3500 mm (M30x1,5), 80...1600 mm (M18x1)

Downloads

Product Documents

Documents
