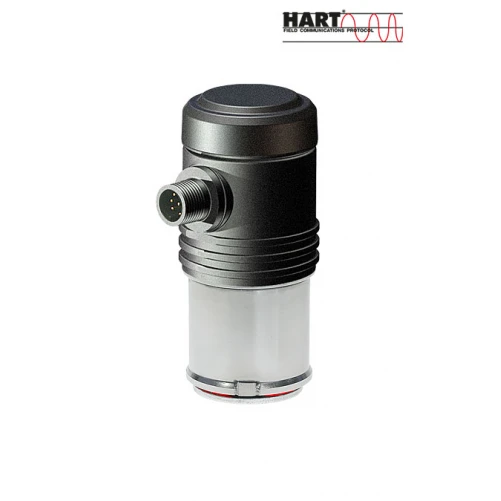

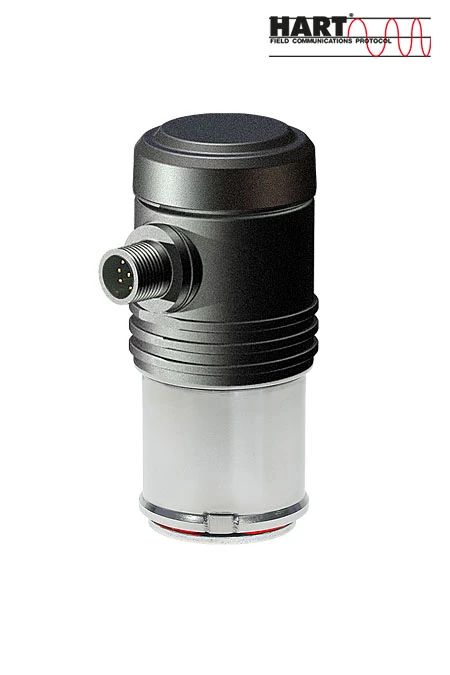

Müller Magnetic Surface Temperature Sensor HART NW

Müller Magnetic Surface Temperature Sensor HART NW

€372,78 (€451,06 incl. VAT)

On backorder, please contact us for the expected delivery date.

Product information and datasheets →

Available on backorder

Why buy from Sensors.nl:

Excellent rating: 96.42% had a good to very good experience
Personal customer service and advice
Extra discount possible for large quantities: Contact us

SKU: NM Categories: Müller IE, Recorders active Tag: update2026

Description

technical features

Input: RTD Pt100 (maximum range -50...+200 °C)
Output: 4...20 mA current loop HART (2-wire)
Voltage supply: out of current loop (12...40 VDC)
Accuracy: see technical details
Process connection: clamping magnet
Electrical connection: several plugs
Temperature range: -20...+80 °C (ambient)
Limit value contacts: 2 electronically (NPN / PNP)
Adjustment: software
Material: stainless steel 1.4571 (medium contact)
Protection: at least IP65
