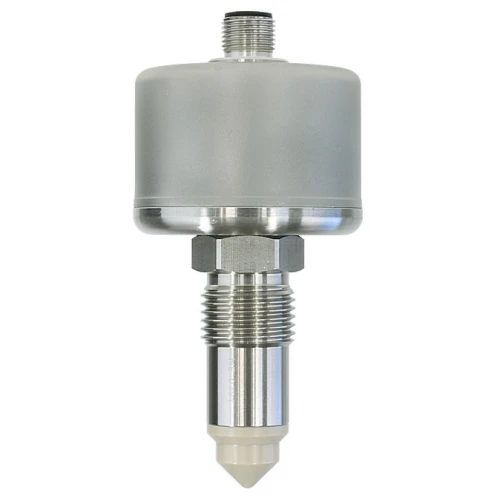

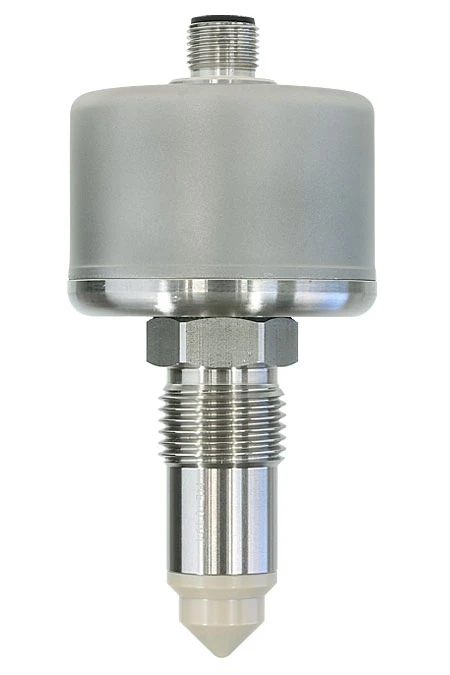

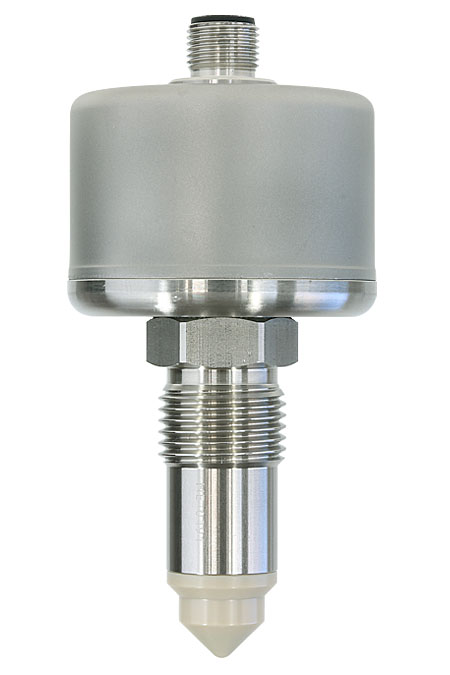

Müller Capacitive level switch for pharma and food type: PFKS

Müller Capacitive level switch for pharma and food type: PFKS

On backorder, please contact us for the expected delivery date.

technical characteristics

Input: aqueous media
Output: PNP, 50 mA
Power supply: 24 VDC
Response time: 140 ms
Process connection: G1 / 2 "hygienic
Electrical connection: M12x1, 4-pole
Temperature range: -10 ... 60 ° C (operation)
Sensor tip: PEEK
System pressure: maximum 10 bar
Process temperature: 0 ... 100 ° C
Protection: IP67 (electronics) / IP68

Product information and datasheets →

Why buy from Sensors.nl:

Excellent rating: 96.42% had a good to very good experience
Personal customer service and advice
Extra discount possible for large quantities: Contact us

SKU: PFKS Categories: Electronic level switches, Müller IE Tag: update2026

Extra information

Brand	Müller IE

Downloads

Product Documents

Documents

Data sheet
