Ultrasonic liquid flow meter | DN15~DN6000

Name: Ultrasonic liquid flow meter | DN15~DN6000
SKU: SRS-Original
Availability: PreOrder

€945,00 (€1.143,45 incl. VAT)

On backorder, please contact us for the expected delivery date.

Available on backorder

Why buy from Sensors.nl:

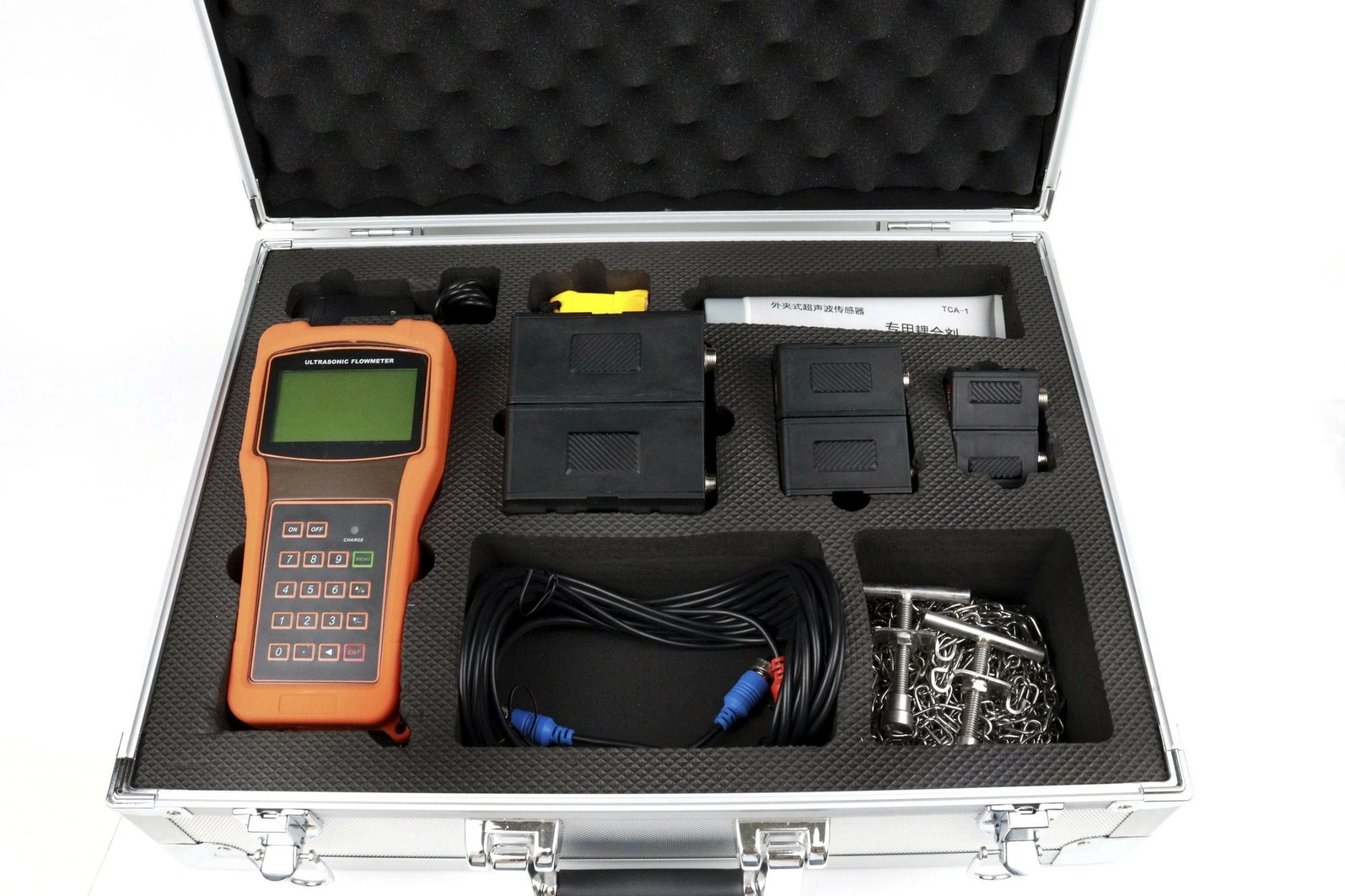

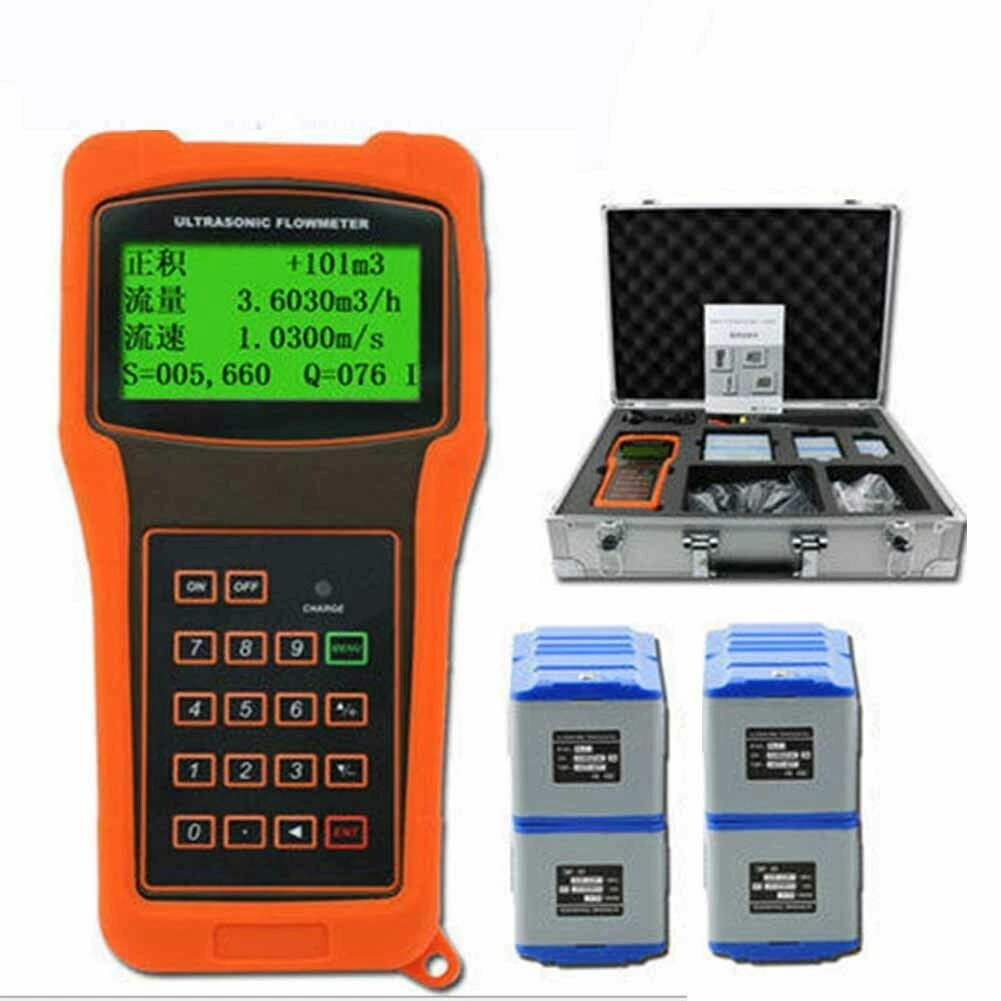

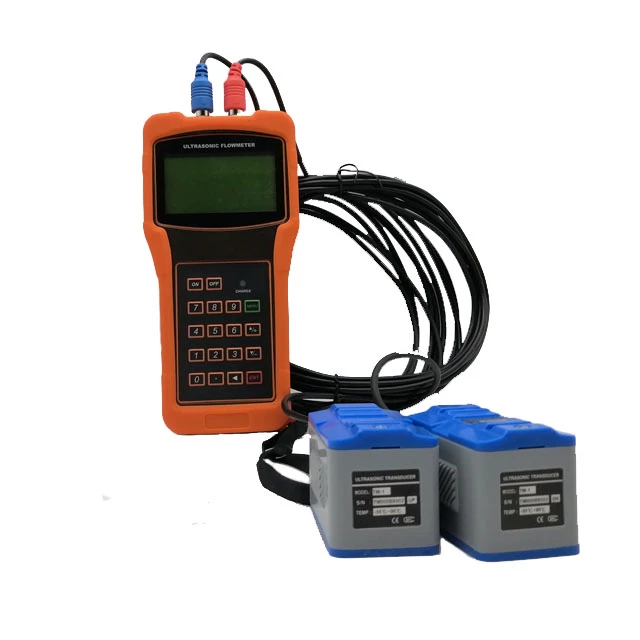

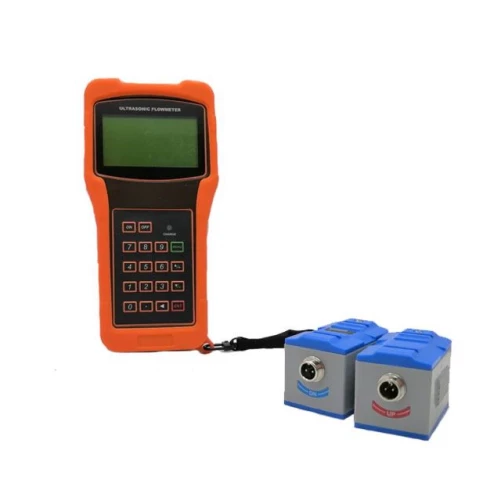

SRS-2000H hand held Ultrasonic flow meter is a battery powered ultrasonic flow meter.

Item	Ultrasonic flow meter SRS-Original
Pipe Size	15mm-6000mm
Totalizer	7-digit totals for net,positive and negative flow respectively
Liquid Types	Virtually all liquids
Display	4*16 English letters
Transducers	3 x Clamp on sensors for ultrasonic flow meter
Transducer Cord Length	Standard 2-10 meters,optional 2*500 meters
Power Supply	3AAA Ni-H built-in batteries. 90~230VAC for the charger+
Data Logger	Built-in data logger can store over 2000 lines of data
Manual Totalizer	7-digit press-key-to-go totalizer for calibration
Housing Material	ABS
Case Size	500x400x20 cm
Handiest Weight	514g(1.2lbs) with batteries
Linearity	0.50%
Repeatability	0.20%
Accuracy	±1% of reading at rates >0.2mps
Velocity	±32 m/s

Wide flow measurement range, from 0 m/s to 32 m/s
Bi-directional measurement, totalize for net, positive and negative flow. with large screen
High accuracy, better than 1 % of velocity
Wide pipe size range, from DN15 to DN6000
Suitable for all commonly used pipe materials
Rechargeable battery with 12 hours of operation
Built-in data logger
Robust platic case
