Adjustable pressure switch type PF244
Price range: €30,66 through €35,96 (€37,10 incl. VAT)
On backorder, please contact us for the expected delivery date.
Product information and datasheets →
Why buy from Sensors.nl:
- Excellent rating: 96.42% had a good to very good experience
- Personal customer service and advice
- Extra discount possible for large quantities: Contact us
Description

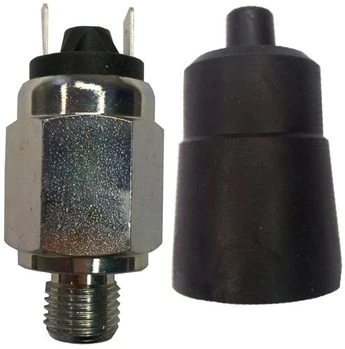

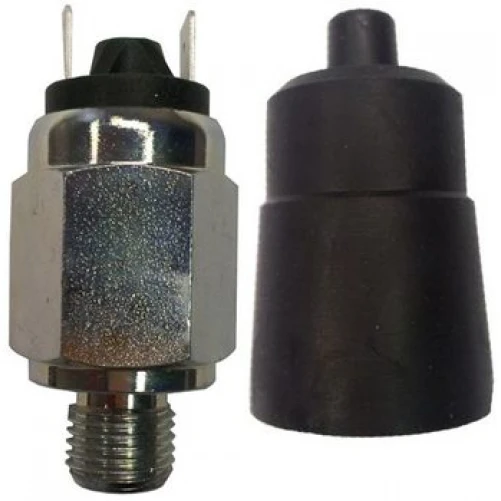

Electromechanically adjustable high voltage pressure switch (max. 250 volts), normally open or normally closed contacts, electrical connection to faston 6.3 x 0.8 IP00. Key hexagonal housing 24. IP54 electrical protection with CP54 protective cover is supplied separately. Threaded process connections.
Extra information
| Pressure range (Bar) | 0,1..1, 0,2..2, 1,5..10, 15..50, 40..300, 40..80, 9..20 |
|---|---|
| Overpressure max. | 600, 300 |
| Max supply | 220 V |
| Brand | Sensors.nl |
