BLÜ-TEST PACKAGE
No more hassle with cables, meters or separate data loggers! Blü-Test offers NIST-certified test instruments for temperature, humidity and pressure. Each probe performs measurements and stores data in its built-in memory. Via the Blü-Test app, this data can be easily downloaded to a smart device such as a smartphone or tablet. No more hassle with cables or separate meters!

What is NIST?
NIST stands for the National Institute of Standards and Technology, a scientific institution under the U.S. federal government. NIST strives for standardization in science, including defining units. Founded in 1901 as the National Bureau of Standards (NBS).

All-in-one test instrument set. Each probe can store up to one million measurements.

• 3.7V, 2600mAh rechargeable battery.
• Charging cable included.
• At least 10 days of data logging on the probe.
• Each probe is calibrated with equipment traceable to the National Institute of Standards and Technology (NIST). Test data is readily available on the probe's OLED screen or sent to the user's smart device. Continuously updated.

The data points can be:

• Logged (recorded)
• Ranked
• Emailed

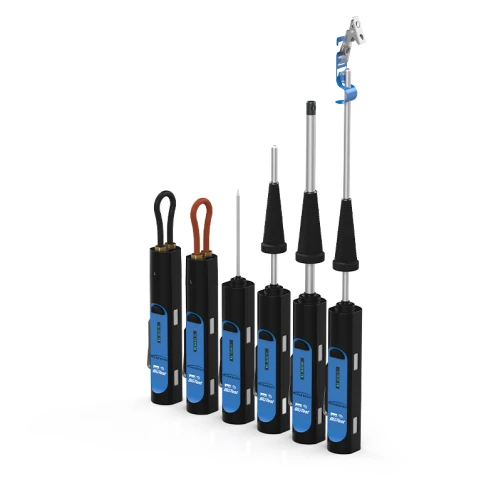

Probes included in package:

• Low differential pressure range
• Standard differential pressure range
• 100mm piercing temperature
• 150mm (6 inch) Temperature
• 200mm (8 inch) Combination of Temperature and Humidity
• 240mm (9 inch) Temperature
• Distance probe & temperature prick probe

By pressing a button you can scroll through various displays, such as:

• BAPI part number
• Log notification
• Degrees Fahrenheit
• Degrees Celsius
• Firmware Version
• Product ID
• Inches of water column measurements
• Probe type identification
• Battery charging level
• Humidity level
• Pascal measurements

The black button, in the middle of the front of the device, is a multifunction button. This button turns the device on if you hold it down for a few seconds, scrolls through the display menu on the OLED display, and turns the device off if you hold it down again for a few seconds after this. The OLED display can display measured values (and desired units if applicable), battery charge status, BAPI part number, log message, firmware version, product ID, etc. Each instrument also has a belt clip on one side, a magnetic side panel on the other and a D-ring clip on the bottom of the instrument. It is also possible to hang an instrument from the hanging clip that comes with the instrument(s). This convenient attachment allows you to hang the instrument in a place where a measurement, without human assistance, would otherwise be impossible. You can leave the instrument hanging to get a lot of valuable measurements in one specific spot in a room/building over time.

Environment and measurement range: Environment:

• Probe 'body': -30 to 70°C
• Temperature probes: -40 to 85°C
• Temp./RH probe: 5 to 95% non-condensing @ -40 to 70°C
• Air pressure probes: -20 to 70°C

Measurements:

• Temperature probes: -40 to 85°C
• Temp./RH probe: 5 to 95% non-condensing @ -40 to 70°C
• Differential pressure:
  • Standard range: -1250 to +1250 Pa (Pascal) @ -20 to 70°C
  • Low range: -250 to +250 Pa (Pascal) @ -20 to 70°C

Blü-Test use:

• System evaluation before commissioning
• Evaluations by commissioning engineer/engineer
• Ongoing general maintenance: technical applications, monitoring and analysis
• Validation of installation of equipment
• Solving system problems

For what kind of people is this most valuable:

• Commissioning engineers/engineers
• Facility managers
• Installation Technicians
• HVAC control/control technicians
• Mechanical engineers
• Control/control engineers

Data recording on probe or app: is fixed at 10-second interval.

Blü-Test units are sold individually or as a bundle in a convenient carrying case. The Blü-Test app is available on Google Play™ or the App Store®. It is recommended to have Android OS 4.4 (SDK19) or Apple iOS 10 (or higher) installed on your mobile.
