2 Valve Manifolds H2S types

AS-Schneider Soft Seated Direct Mount 2 Valve Manifolds H2S types are normally flanged between the Stabilized Connectors and a 5 Valve Manifold. The 2 Valve Manifolds are roddable and are providing 2 auxiliary ports (1/2 NPT female plugged).

Accessory Kits incl. washers are required for manifold to transmitter mounting, because the manifolds are provided with slotted bolt holes.

Bore Size: 3/8″ (9.5 mm) - Roddable

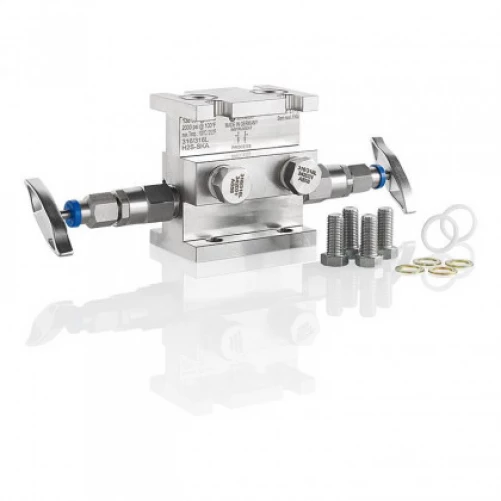

Part No.: H2S-SKA

H H-Style Manifold - Flange x Flange
2 Quantity Bonnets: 2
S Manifold Design: Straight types, Bore Size 3/8″ (9.5 mm)
–
S Material: 1.4401 / 1.4404 / 316 / 316L
K Stem Seal / Packing: O-Ring FKM
A Seat Material: ETFE
