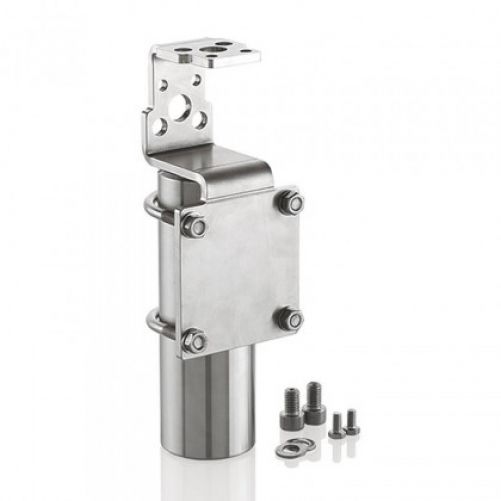

The Bracket fits to AS-Schneider Manifolds H, T and W as well as to Soft Seated Remote Mounted Manifolds types R (see catalogue AS-4302 - Soft Seated Needles Valves and Manifolds). For Manifolds types H a spacer is required, which is contained in the Mounting Bracket Kit AKM-UPS-H. The standard types AKM-UPS contains 2 M6 manifold/bracket bolts for Manifolds types T and R as well as 2 M10 manifold/bracket bolts for Manifolds types W. The bracket is designed for 2″ pipe mounting and gives full clearance for ease of handle operation.
The Mounting Bracket contains:
1 Mounting Bracket
2 'U' Bolts
4 Washers - 8.4
4 Hexagon Nuts M8
2 Hex Cap Screws M6 x12 (AKM-UPS-H requires instead the bolt M6x35)
2 Socket Head Cap Screws M10x14 (not for AKM-UPS-H)
1 Spacer (For AKM-UPS-H only)
Part No.: AKM-UPS
AKM Mounting Bracket Kit
–
T Suitable for: Manifolds types R, T and W
P Mounting Method: 2″ Pipe Mounting
S Material: 316 Stainless Steel
