Equalizer Manifolds EM3 types

AS-Schneider Soft Seated Direct Mount Equalizer Manifolds are designed for direct mounting to Differential Pressure Transmitters. The inlet connections (process connection), as standard, are 1/4 or 1/2 NPT female threaded and the vent connection is 1/4 NPT female. The test/calibration ports 1/4 NPT female are plugged.

Bore Size:

- Process to Instrument Connection - Bore Size 3/8″ (9.5 mm) - Roddable
- Equalize and Vent Valves - Bore Size 0.138″ (3.5 mm)

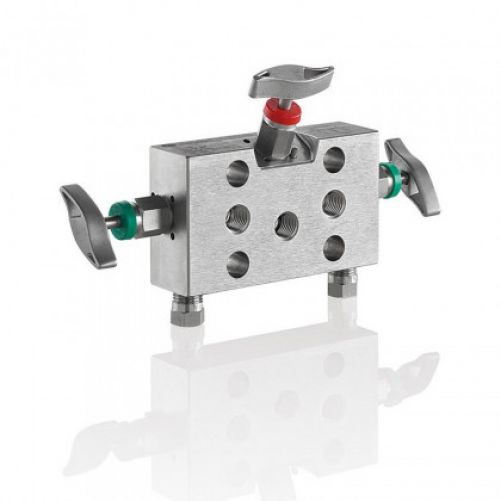

Part No.: EM3-SKDN2

EM Equalizer Manifold
3 Quantity Bonnets: 3
–
S Material: 1.4401 / 1.4404 / 316 / 316L
K Stem Seal / Packing: O-Ring FKM
D Seat Material: POM
N2 Thread Size: 1/4 NPT
