VZOA 15 Aquametro Oil Meter - (10-400 Max 600 litre/hr) Pulse Output = 0.1 Litre/Pulse Reed Switch
€1.030,00 (€1.246,30 incl. VAT)
VZOA 15 Contoil Oil Meter
Flow: 10-400 litre/hr Max 600 litre/hr
Mechanical Totalizer (Litres) Non-reset
Pulse Output = 0.1 Litre/Pulse Reed Switch
Mechanical Totalizer (Litres) Non-reset
Pulse Output = 0.1 Litre/Pulse Reed Switch
Nominal diameter: 15mm (1/2″)
Optional fittings available
Product Code: 92287
Product Code: 92287
Available on backorder
- 96.42% Has a good to very good experience with SENSORS.NL
- Personalized customer service
- Spacious assortment with a wide range of top brands
- Need an additional discount for quantities? Please contact us
VZ0A 15 Contoil Oil Meter - (10-400 Max 600 litre/hr)
Ring Piston or Oscillating Piston Type
Mechanical Totalizer (Litres) Non-reset
Pulse Output = 0.1 Litre/Pulse Reed Switch
Nominal diameter: 15mm (1/2″)
Optional fittings available
Max Temp 130°C
Max Pressure 16 bar
Positive Displacement / Low Pressure Drop Design
Accuracy ± 0.5% of actual value
8 Digit Totaliser
Ring Piston or Oscillating Piston Type
Mechanical Totalizer (Litres) Non-reset
Pulse Output = 0.1 Litre/Pulse Reed Switch
Nominal diameter: 15mm (1/2″)
Optional fittings available
Max Temp 130°C
Max Pressure 16 bar
Positive Displacement / Low Pressure Drop Design
Accuracy ± 0.5% of actual value
8 Digit Totaliser
Product Code: 92287
Specification
VZOA 15 RC 130/16-RV0.1

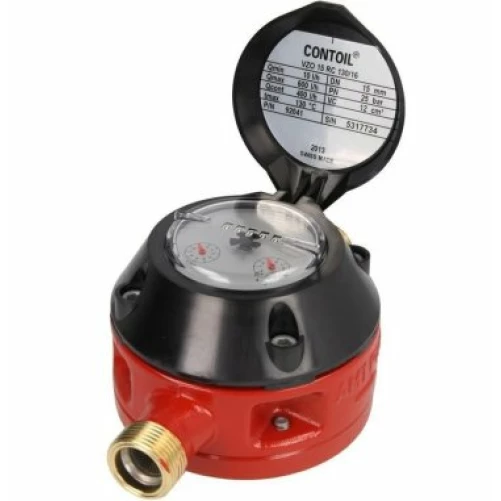

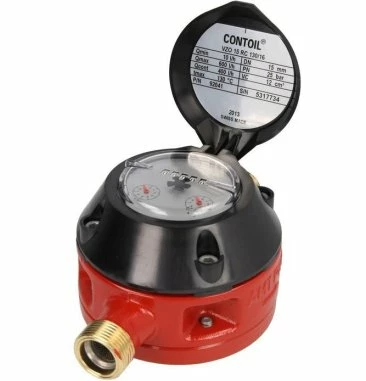

CONTOIL® oil meter VZOA 15 RC 130/16-RV 0.1
Ring piston meter for mineral oil, with rotatable roller counter
Nominal diameter: DN 15 mm
With threaded ends 3/4" (for couplings 1/2")
Nominal pressure: PN 16 bar
Installation length: 165 mm
Installation position: horizontal / vertical
Temperature, max: 130 °C
Measuring range (at visc. 1...20 mPa.s): 10...600 l/h
Max. continuous flow Qn: 400 l/h
Max. measuring deviation: ± 0.5% of measured value
Repeatability: ± 0.2%
Smallest readable value: 0.01 l
Registration capacity: 1 Mio l
With RV Reed pulser integrated in register unit
Contact load max: 48 V AC/DC, 50 mA, 2 W
Pulse value: 0.1 l
| Weight | 10 kg |
|---|
