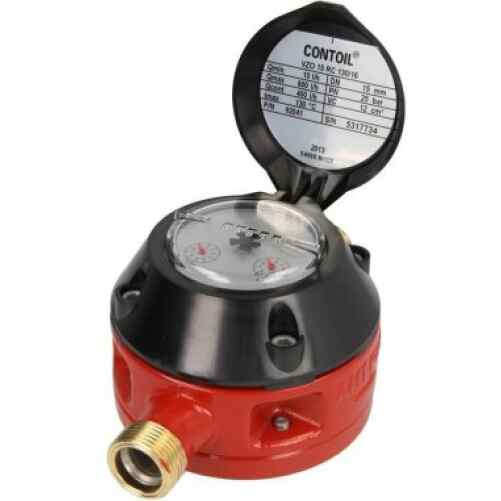

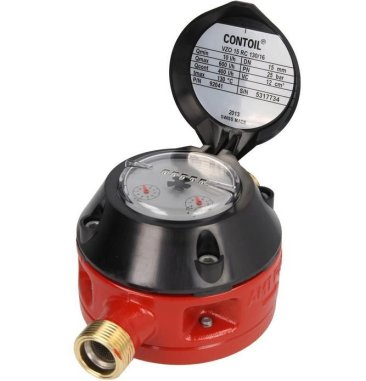

VZOA 15 Aquametro Oil Meter - (10-400 Max 600 litre/hr) Pulse Output = 0.01 Litre/Pulse Inductive Pulser
€1.700,00 (€2.057,00 incl. VAT)
Flow: 10-400 litre/hr Max 600 litre/hr
Mechanical Totalizer (Litres) Non-reset
Pulse Output = 0.01 Litre/Pulse Inductive Pulser
Product Code: 92289
Available on backorder
- 96.42% Has a good to very good experience with SENSORS.NL
- Personalized customer service
- Spacious assortment with a wide range of top brands
- Need an additional discount for quantities? Please contact us
VZ0A 15 Contoil Oil Meter - (10-400 Max 600 litre/hr)
Ring Piston or Oscillating Piston Type
Mechanical Totalizer (Litres) Non-reset
Pulse Output = 0.01 Litre/Pulse Inductive Pulser
Max Temp 130°C
Max Pressure 16 bar
Positive Displacement / Low Pressure Drop Design
Accuracy ± 0.5% of actual value
8 Digit Totaliser
Specification
VZOA 15 RC 130/16-IN0.01
CONTOIL® oil meter VZOA 15 RC 130/16-IN 0.01
Ring piston meter for mineral oil, with rotatable roller counter
Nominal diameter: DN 15 mm
With threaded ends 3/4" (for couplings 1/2")
Nominal pressure: PN 16 bar
Installation length: 165 mm
Installation position: horizontal / vertical
Temperature, max: 130 °C
Measuring range (at visc. 1...20 mPa.s): 10...600 l/h
Max. continuous flow Qn: 400 l/h
Max. measuring deviation: ± 0.5% of measured value
Repeatability: ± 0.2%
Smallest readable value: 0.01 l
Registration capacity: 1 Mio l
With built-on inductive IN pulser as per DIN 19234
Supply 5...15 V DC, signal at 8 V DC  1 mA /  3 mA
Pulse value: 0.01 l
| Weight | 10 kg |
|---|
