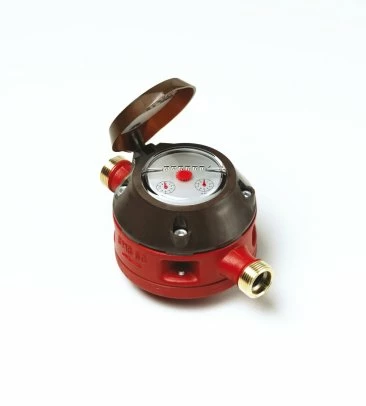

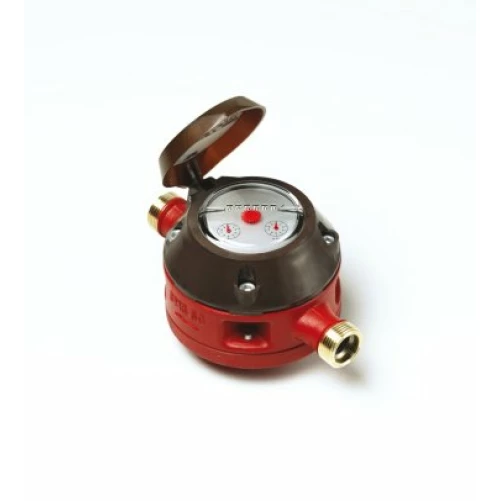

VZO 25 Aquametro Oil Meter - (75-2000 Max 3000 litre/hr) Pulse Output = 0.1 Litre/Pulse

Name: VZO 25 Aquametro Oil Meter - (75-2000 Max 3000 litre/hr) Pulse Output = 0.1 Litre/Pulse
SKU: VZO 25 RC 130/16-IN 0.1
Availability: PreOrder

€1.796,00 (€2.173,16 incl. VAT)

VZO 25 Contoil Oil Meter

Flow: 75-2000 litre/hr Max 3000 litre/hr
Mechanical Totalizer (Litres) Non-reset
Pulse Output = 0.1 Litre/Pulse Inductive Pulser

Nominal diameter: 25mm (1″)

Optional fittings available

Product Code: 91913

Productinformatie en datasheets →

Available on backorder

Waarom kopen bij Sensors.nl:

Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
Persoonlijke klantenservice en advies
Extra korting bij grote aantallen mogelijk: Neem contact op

Add to quote

SKU: VZO 25 RC 130/16-IN 0.1 Categories: Aquametro, Fuel consumption, Flow Meters, Mechanical flowmeters Tag: Aquametro

Beschrijving

VZO 25 Contoil Oil Meter - (75-2000 Max 3000 litre/hr)
Mechanical Totalizer (Litres) Non-reset
Pulse Output = 0.1 Litre/Pulse Inductive Pulser

Nominal diameter: 25mm (1″)

Optional fittings available
Product Code: 91913
Max Temp 130C
Max Pressure PN16
Positive Displacement / Low Pressure Drop Design
Accuracy 1% of actual value
8 Digit Totaliser

Specification

VZO 25 RC 130/16-IN0,1

CONTOIL® oil meter VZO 25 RC 130/16-IN 0.1
Ring piston meter for mineral oil, with rotatable roller counter

Nominal diameter: DN 25 mm
With threaded ends 1 1/4" (for couplings 1")
Nominal pressure: PN 16 bar
Installation length: 190 mm
Installation position: horizontal / vertical
Temperature, max: 130 °C
Measuring range (at visc. 1...20 mPa.s): 75...3000 l/h
Max. continuous flow Qn: 2000 l/h
Max. measuring deviation: ± 1% of measured value
Repeatability: ± 0.2%
Narrowest readable value: 0.1 l
Registration capacity: 10 Mio l

With built-on inductive IN pulser as per DIN 19234
Supply 5...15 V DC, signal at 8 V DC 1 mA / 3 mA
Pulse value: 0.1 l
