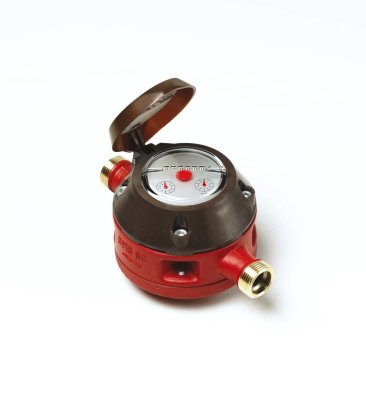

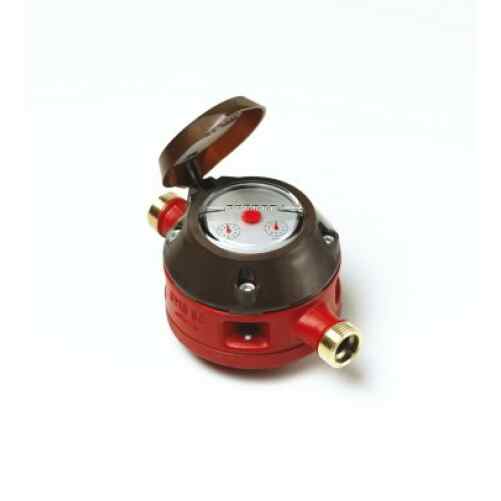

VZO 25 Aquametro Oil Meter - (75-2000 Max 3000 litre/hr) Pulse Output = 1 Litre/Pulse

Specification

VZO 25 RC 130/16-RV1

CONTOIL® oil meter VZO 25 RC 130/16-RV 1
Ring piston meter for mineral oil, with rotatable roller counter

Nominal diameter: DN 25 mm
With threaded ends 1 1/4" (for couplings 1")
Nominal pressure: PN 16 bar
Installation length: 190 mm
Installation position: horizontal / vertical
Temperature, max: 130 °C
Measuring range (at visc. 1...20 mPa.s): 75...3000 l/h
Max. continuous flow Qn: 2000 l/h
Max. measuring deviation: ± 1% of measured value
Repeatability: ± 0.2%
Narrowest readable value: 0.1 l
Registration capacity: 10 Mio l

With RV Reed pulser integrated in register unit
Contact load max: 48 V AC/DC, 50 mA, 2 W
Pulse value: 1 l
