Aluminum fuel flow meter / Piusi K24

€245,30 (€296,81 incl. VAT)

digital plastic fuel turbine gauge K24
1″ MxF connections
Suitable for diesel
Range: 7-120 l/min

Available on backorder

96.42% Has a good to very good experience with SENSORS.NL
Personalized customer service
Spacious assortment with a wide range of top brands
Need an additional discount for quantities? Please contact us

SKU: F00408100 Categories: Fuel consumption, Flow Meters, Sensors.nl

Description
Downloads

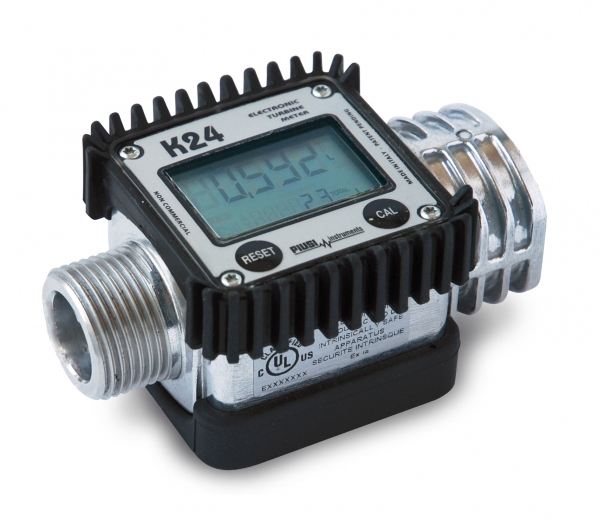

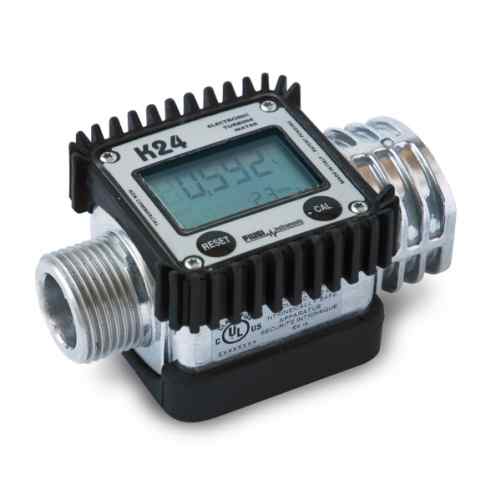

K24 Aluminum digital fuel turbine gauge

1″ MxF connections

Suitable for diesel

Rugged aluminum body and polypropylene interior.

Battery powered by two AAA batteries, the LCD shows the 5-digit resetable total, the 6-digit total, as well as the flow rate.

Features:

Accuracy +/- 1%
Repeatability 0.2%
Flow range 7-120L/min
Maximum working pressure 10bar
Burst pressure 30 bar
1″ BSP male inlet
1″ BSP female outlet
Operating temperature -10°C to 50°C
The display can be rotated in 90° increments to change orientation
Can be recalibrated on-site by the user
