Explosion-proof
IO-link

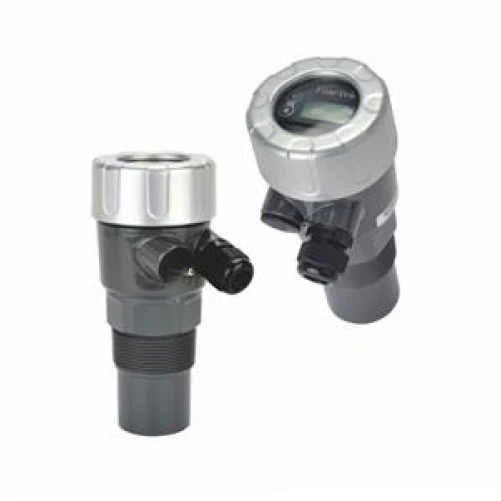

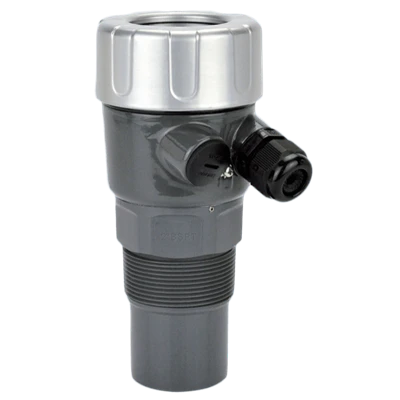

Ultrasonic level transmitter with display EAX series
€795,00 (€961,95 incl. VAT)
- Ultrasonic Level Transmitter with display
- Model No.: ZMWB1A
- Order No.: EAX20000-AB291
- Connection: 2″ BSPT male
- Cable Entry: M20
- Material: Transducer: PVDF/ Housing: Powder AL.(IP67)
- Range:12M, Working Temp.:-40~60 dec.C
- Accuracy: +-0.25%
- Communications: 4~20mA + HART
Available on backorder
- 96.42% Has a good to very good experience with SENSORS.NL
- Personalized customer service
- Spacious assortment with a wide range of top brands
- Need an additional discount for quantities? Please contact us
EAX Ultrasonic Transmitter The ultrasonic level transmitter is a non-contact, inexpensive and easy-to-install measuring instrument. It can be applied to most industrial applications for both solids and liquids. The most important aspect is that it is easy to install and requires little maintenance because there are no moving parts.
During operation, the device emits a wave into the medium being measured. The wave reflects off the surface and travels back to the device where a transducer calculates the distance. The distance is based on the time interval between transmission and reception of the wave. With 4 ~ 20mA output, the signal can be connected to a PLC, DSC or SCADA systems. In addition, it is also equipped with exclusive PULSE and AGC (Auto Gain Control). Echo tracking technology ensures accurate measurement even in the most demanding environments.
| Brand | FineTek |
|---|
