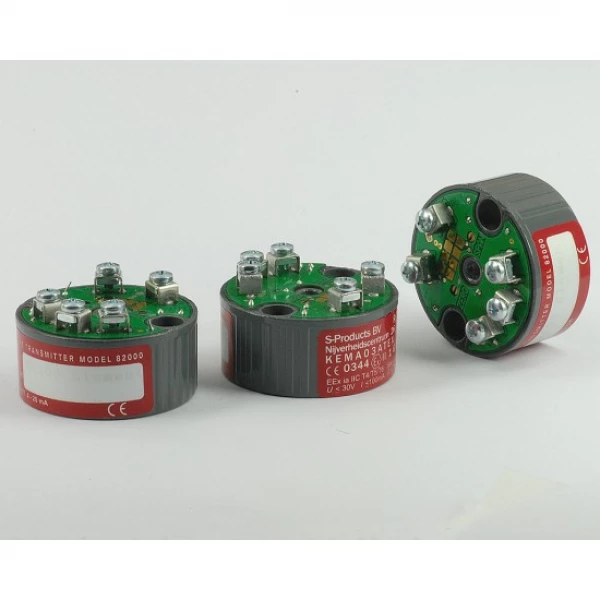

S-Products Headmount temperature transmitter R82000

€98,50

Range (°C)

Clear

Checking current stock status? Then contact us or use the live chat.

Waarom kopen bij Sensors.nl:

GENERAL
Linearization	0,1%
Tension adjustment	50 ° to 800 ° C
Delivery effect	± 0.002% / V
Zero adjustment	Between -50 ° and + 50 ° C
Power supply	12 - 36 V direct current
Vnom	24 V direct current
Tamb	25 ° C
Output	4 - 20 mA
Range nom.	RTD = 100 ° CT / C = 250 ° C
Payload	(V [bat] - 12V) / 20mA
Sensor cable resistance effect	0.01 ° C / Ohm; max height 500 Ohm
No deviation	± 0.02% / ° C
Span drift	± 0.02% / ° C
Ambient Operational Temp.	-20 to 70°C
Open Circuit Detection	Upscale> 23 mA, limited 40 mA
Degree of protection	IP20
Storage temperature	-20 to 100°C

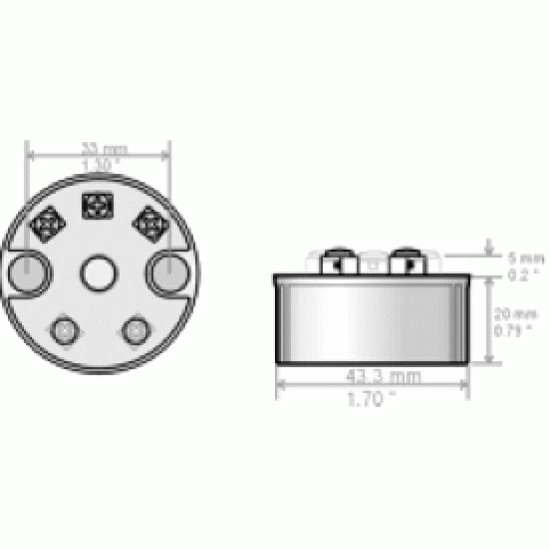

Housing Dimensions Dia. x H.	43 mm x 25 mm
