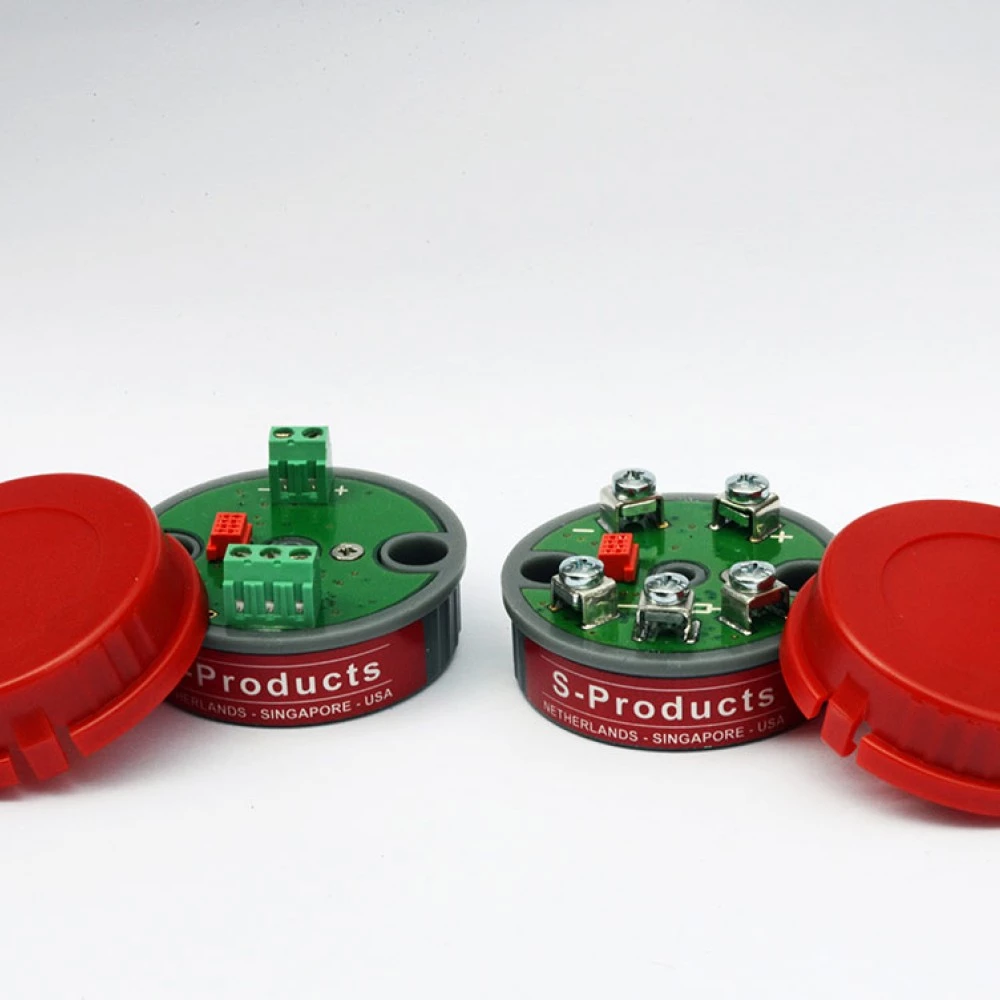

S-products Headmount temperature transmitter MP82830-R

€42,75 (€51,73 incl. VAT)

Microprocessor based
RTD input (Pt100-3 wire)
Fully linearized
RFI / EMI protected
High accuracy (typically 0.2%)
5-year warranty
Low-cost

96.42% Has a good to very good experience with SENSORS.NL
Personalized customer service
Spacious assortment with a wide range of top brands
Need an additional discount for quantities? Please contact us

SKU: MP82820-R EOL-1 Categories: S-Products, Signal conditioning

Description
Downloads

GENERAL
Enter Ohm	Ohm, mV
Enter RTD	Pt100, Pt250, Pt500, Pt1000, Ni100, Ni500, Ni1000
Delivery	5..40 VDC, polarity protection
Output	4..20 mA or 20..4 mA
Payload	Vbat-5V / 20 mA
Resistor sensor cable, RTD	500 Ohm max.
Ambient Operational Temp.	-40 ... + 85 ° C.
Open Circuit Detection	Upscale / downscale
Degree of protection	IP30
Startup time	± 10 sec.
Storage temperature	-40 ... + 100 ° C.
Warm-up time	± 2 min.
Housing material	Makrolon
Housing dimensions	43mm dia. x 27 mm H. (1.69" x 0.75")
PT100
Linearization	On off
MV
Minimum span	25 ° C (45 ° F)
