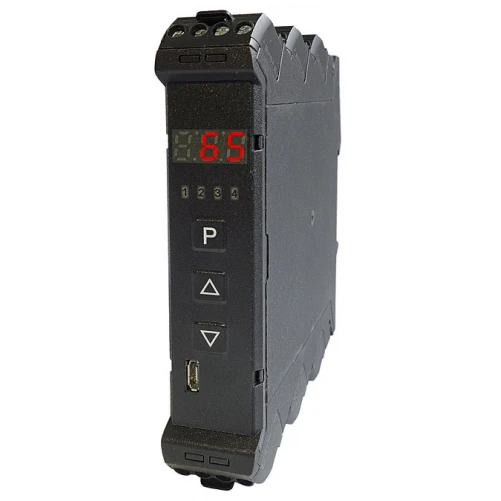

Müller Universal DIN-Rail converter with relay and display- MH-1UR3A.000X.762A

Technical characteristics:

• Inputs: direct voltage, direct current, Pt100, Pt1000, thermocouple, frequency, counter
• Display: red from -199... 999 digits
• Digit height approx. 7 mm
• Min / max value acquisition
• Flashes when the limit is exceeded / undershot
• Tare function
• Programming lock via code entry
• pluggable screw clamp
• optional: analog output 0-10 VDC, 0 / 4-20 mA
• optional: interface RS232 / RS485 / Bluetooth (in preparation)
• optional: encoder power supply including digital input
• optional: two relay outputs or two PhotoMos outputs
• optional: two relay outputs and two PhotoMos outputs
• optional: data logger (in preparation)
• Accessories: PC-based configuration kit PM-TOOL with CD and USB adapter
