RVAN18-230
€840,00 (€1.016,40 incl. VAT)
On backorder, please contact us for the expected delivery date.

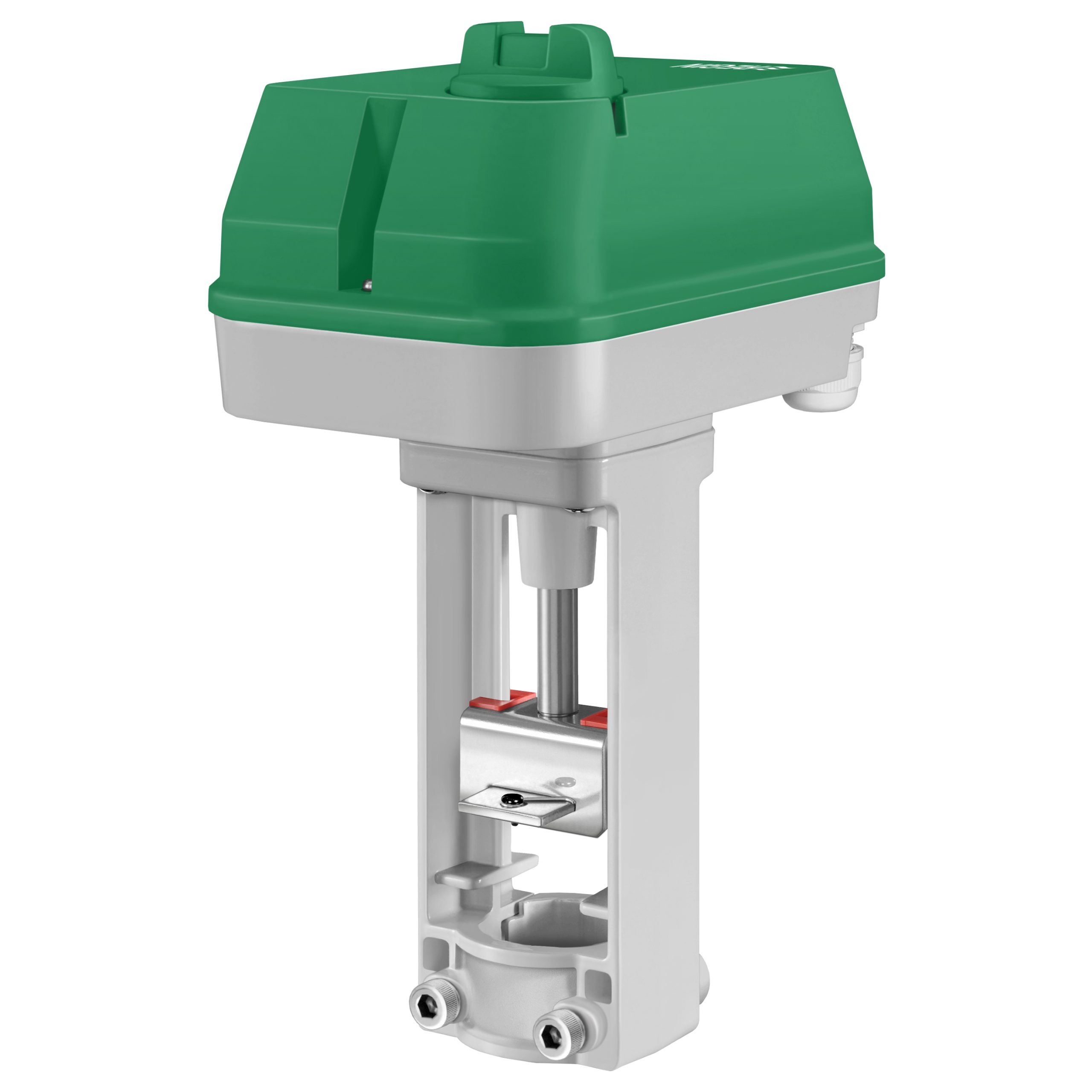

Valve actuator for control of Regin's range of valves. Available in models with actuator force of 500, 1000, 1800 or 2500 N. The actuators can be operated manually with the manual override mechanism on the lid. Using an adapter kit, the actuator can also be adapted for use with other valves on the market.
Available on backorder
Why buy from Sensors.nl:- Excellent rating: 96.42% had a good to very good experience
- Personal customer service and advice
- Extra discount possible for large quantities: Contact us
Description
Specifications
| Force | 1800 N |
|---|---|
| Supply voltage | 230 V AC |
| Power consumption | 15.3 W / 16.5 VA |
| Control signal | 3-point |
| Stroke length | 10...52mm mm, 52 mm |
| Speed | 3 s/mm |
| Protection class | IP54 |
|---|---|
| Ambient humidity (non-condensing) | 10...90 % RH |
| Storage temperature | -40...80 °C |
| Connection toward valve | Standard RVAN |
