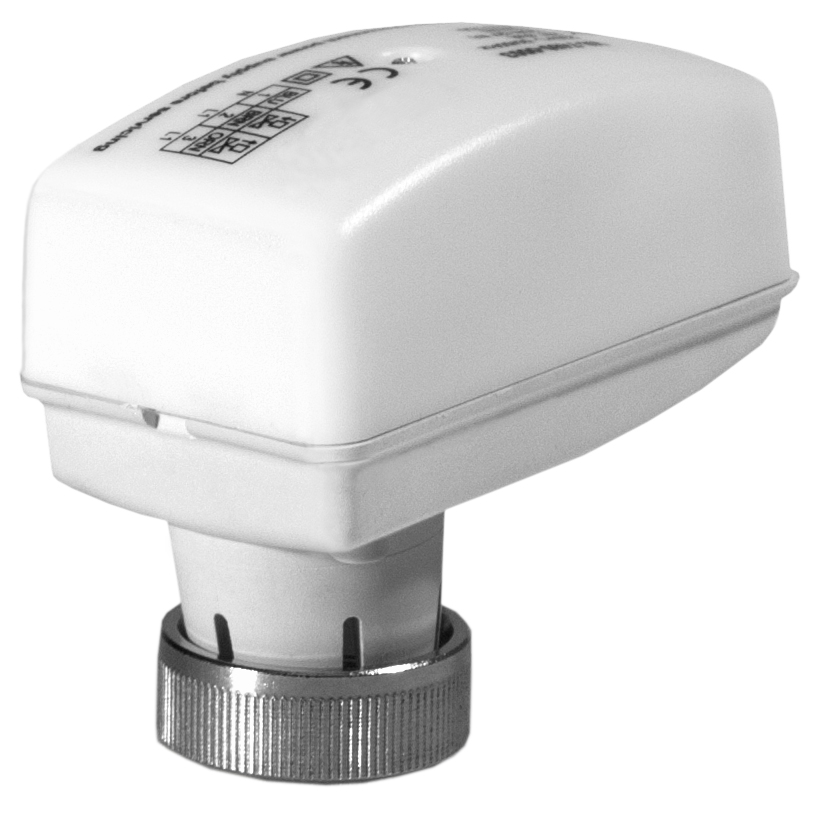

RVAPC-230

On backorder, please contact us for the expected delivery date.

The actuators are compact and easy to install in confined spaces and have a concise LED indication, showing the status and diagnostics of the actuator. The RVAPC models are intended for use together with Regin's pressure independent valve ranges PCTV/PCMTV/PCTVS.

Product information and datasheets →

Why buy from Sensors.nl:

Excellent rating: 96.42% had a good to very good experience

Personal customer service and advice

Extra discount possible for large quantities: Contact us

Add to quote

Specifications

Specifications for RVAPC-230
Control signal	3-point
Stroke	6 mm
Supply voltage	230 V AC
Power consumption	2.2 W / 6.5 VA

Specifications for Electromechanical actuators 120 N, for PCTV, PCTVM and PCTVS valves
Max. media temperature	95°C
Ambient temperature	0...50°C
Storage temperature	-20...+65°C
Ambient humidity	Max. 95 % RH
Protection class	IP43
Force	120N
Stroke time	8s/mm
Cable length	1.5m
