Name: RTAOM125-24
SKU: RTAOM125-24
Availability: InStock

RTAOM125-24

€51,50 (€62,32 incl. VAT)

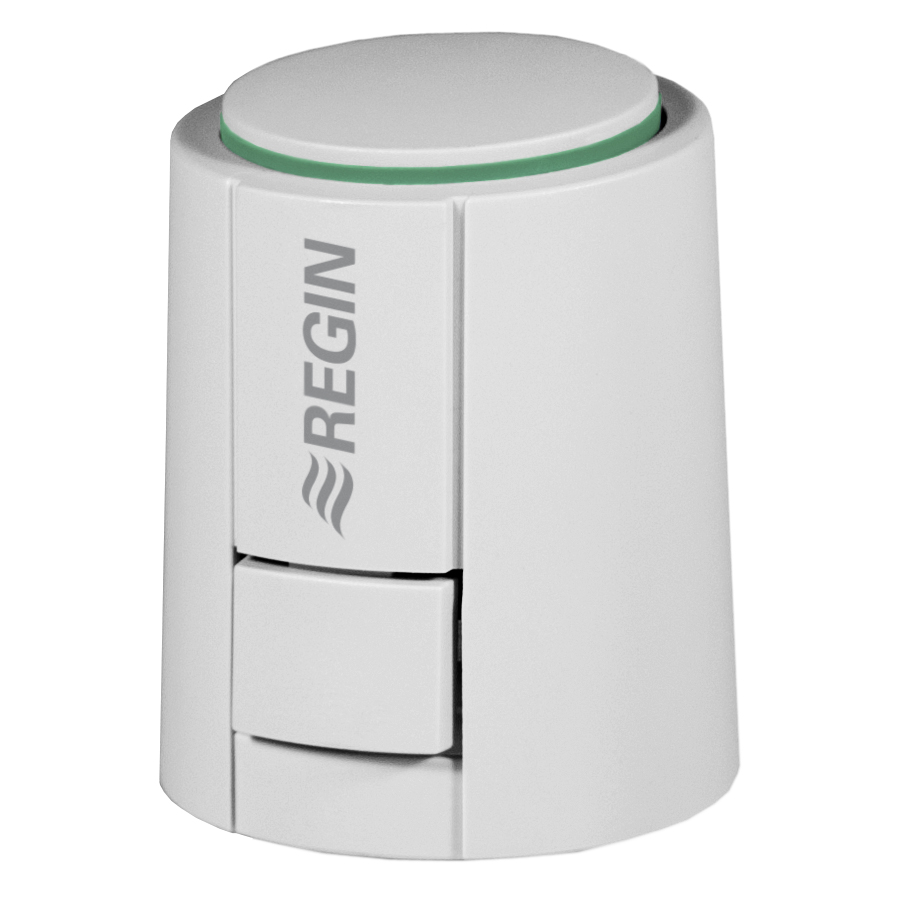

Thermal actuator

96.42% Has a good to very good experience with SENSORS.NL

Personalized customer service

Spacious assortment with a wide range of top brands

Need an additional discount for quantities? Please contact us

SKU: RTAOM125-24 Category: Actuators Tag: Actuators

Specifications

Specifications for RTAOM125-24
Force	125 N
Supply voltage	24 V AC/DC
Power consumption	1.2 W, inrush current 300 mA during max. 2 min
Cable length	2 m
Control signal	On/off, NO
Stroke length	6.5 mm
Speed	41.5 s/mm

Specifications for Thermal actuators 125 N, 6.5 mm stroke
Protection class	IP54
Ambient humidity (non-condensing)	10...90 % RH
Storage temperature	-25...65 °C
Connection toward valve	Snap-on, adapter between valve and actuator needed
