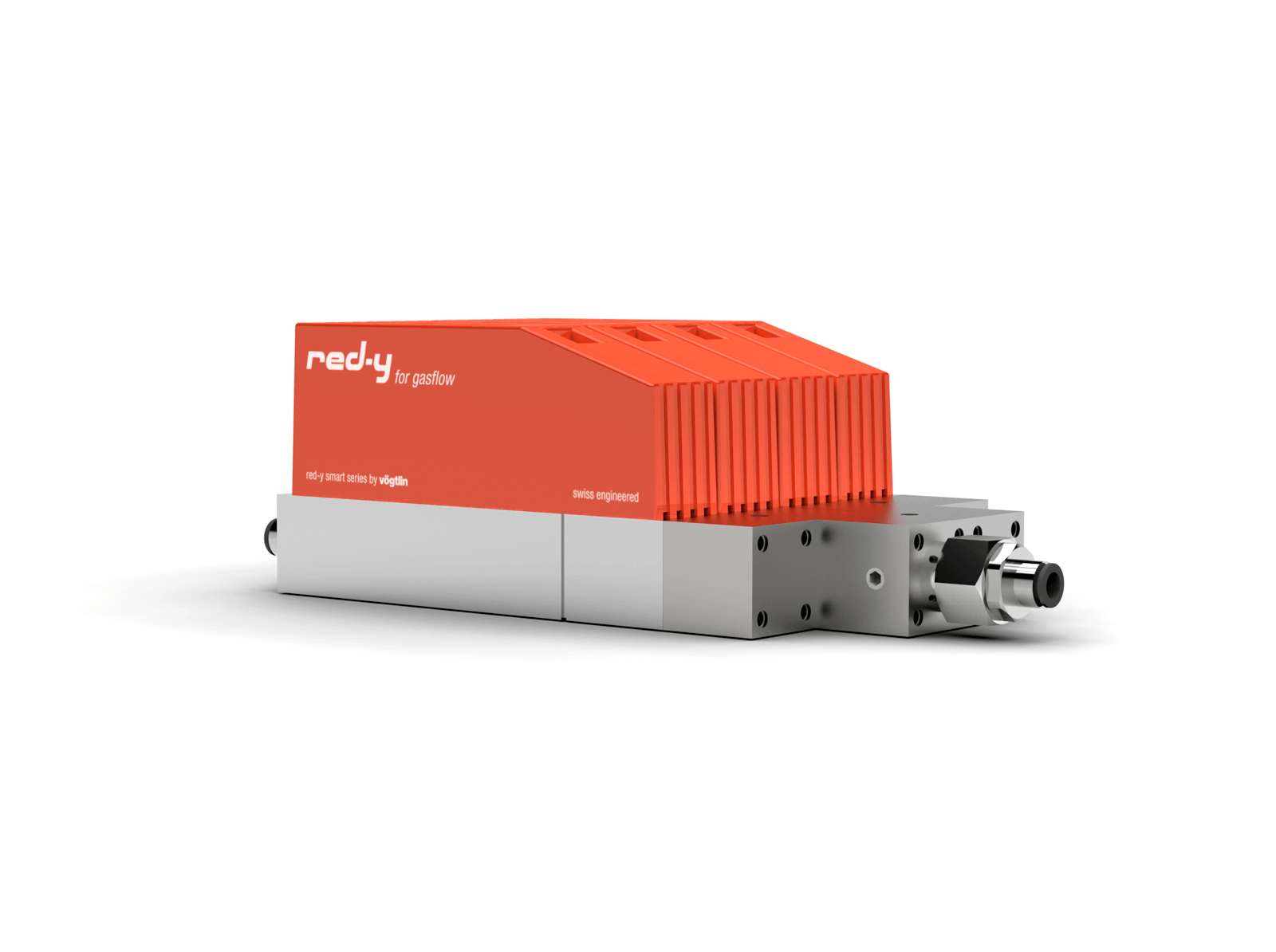

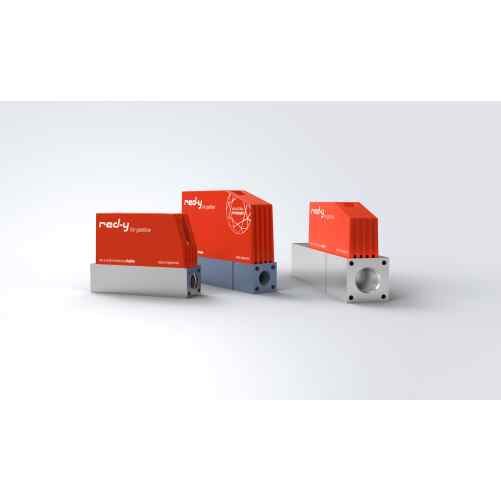

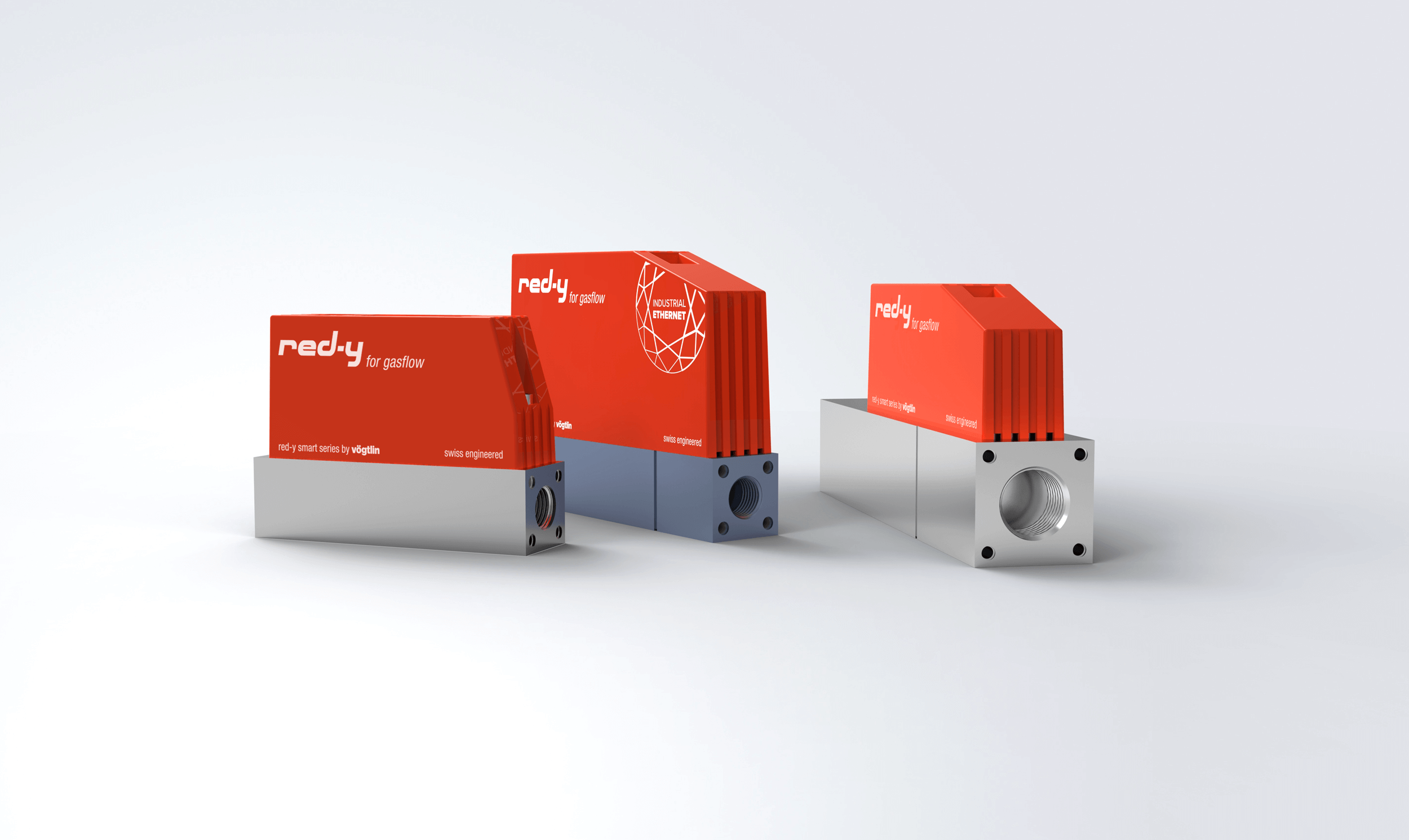

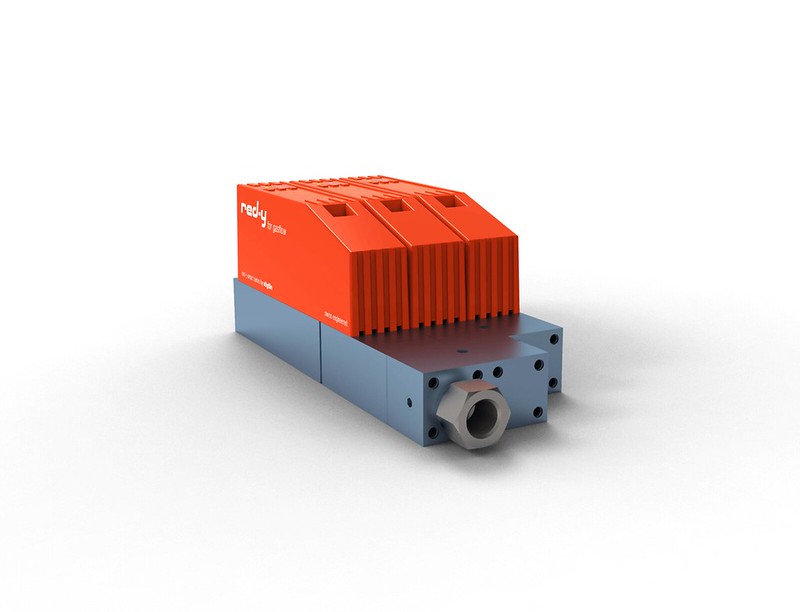

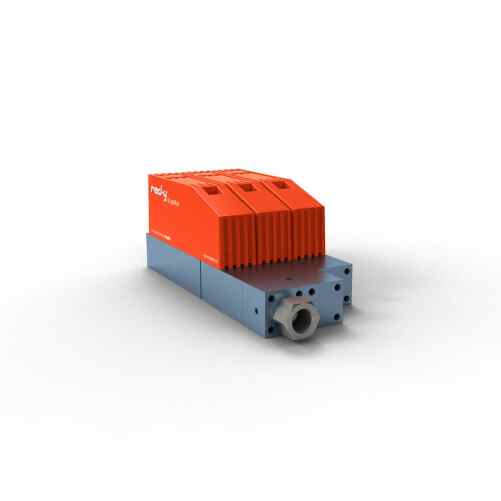

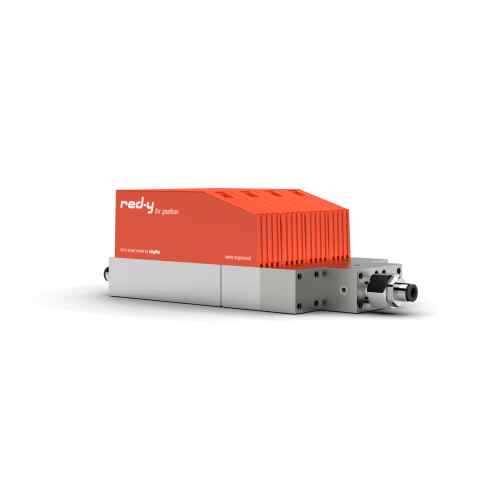

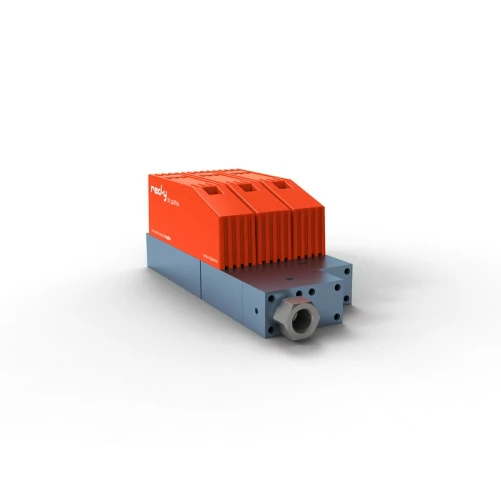

Vögtlin Red Y Smart Series

The red-y smart series thermal mass flow meters (MFM) and mass flow controllers (MFC) are highly recommended for measurement and control within gas delivery systems and in various industrial applications, thanks to their reliable technology and compatibility with industry-standard interfaces.

Productinformatie en datasheets →

Waarom kopen bij Sensors.nl:

Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring

Persoonlijke klantenservice en advies

Extra korting bij grote aantallen mogelijk: Neem contact op

Add to quote

Accuracy: to ±0.3% of the full scale + ±0.5% of the readout. Ratio of minimum to maximum current: 1 : 100 (extended ratio on request).

Analog & Digital The mass flow meters and controllers of the red-y smart series use the latest MEMS technology and have a digital (Modbus RTU) and analog interface as standard.

Modbus Interface for our Mass Flow Devices Profibus Interface for our Mass Flow Devices Profinet RT Interface for our Mass Flow Devices EtherCAT Interface for our Mass Flow Devices

Profibus, Profinet RT and EtherCAT interfaces are available as options. A wide range of cable and power supply accessories is available.

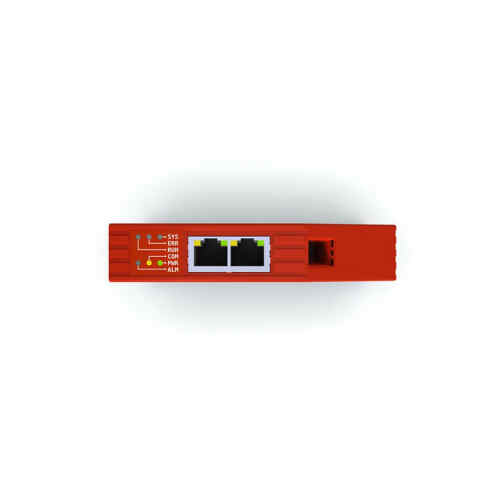

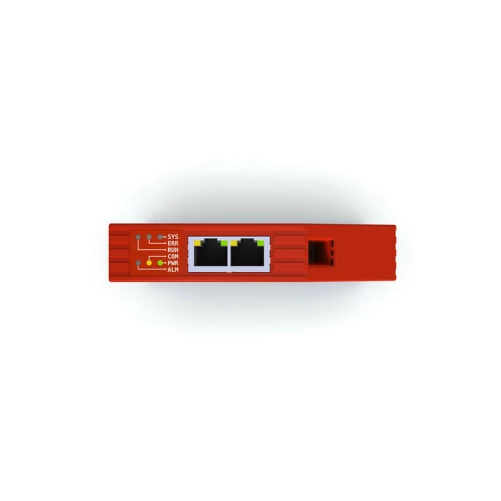

Operating condition indicator The measurement and control instruments offer a built-in LED status indicator.

Safe & Fast Control The red-y smart controller uses an airtight control valve with a leakage rate of less than 1×10-6mbar l/s He. Response times of approximately 150 milliseconds for very fast setpoint control.

Get red-y Software Efficient device management with the free get red-y software:

View flow rate & temperature
Change setpoints
Select measured gas
Visualization of measured data
Adjusting control parameters

Optional modules for the get red-y software include data logging and gas mixing. See all available cables and power accessories for easy PC connection.

Options

Built-in display with flow rate, totalizer, unit of measurement & setpoint control (controller only).
Multigas: One meter or regulator can be used for up to 10 different gases or gas mixtures.

Profibus The instruments are available with Profibus interface: DP-V0 & DP-V1 protocols.

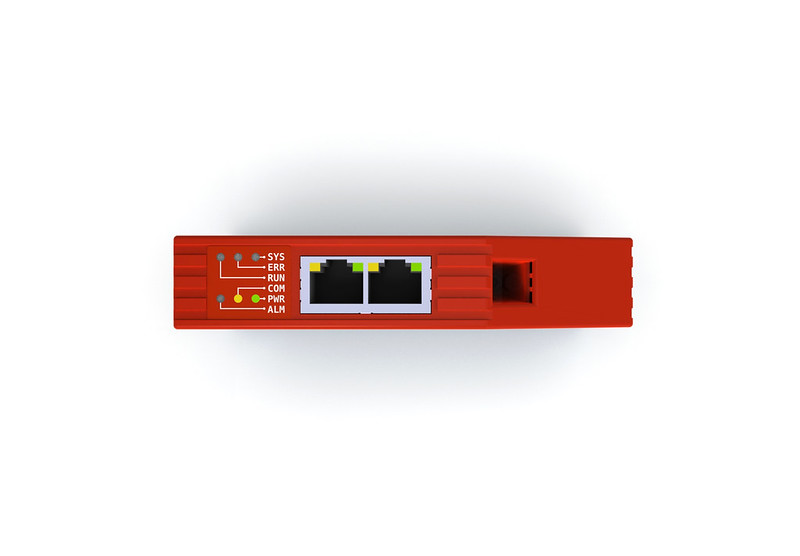

Industrial Ethernet Two industrial Ethernet protocols, Profinet RT and EtherCAT, are available.

Display and Control Unit PCU-10 The PCU-10 allows control of up to 10 flow meters and controllers with predefined process recipes.

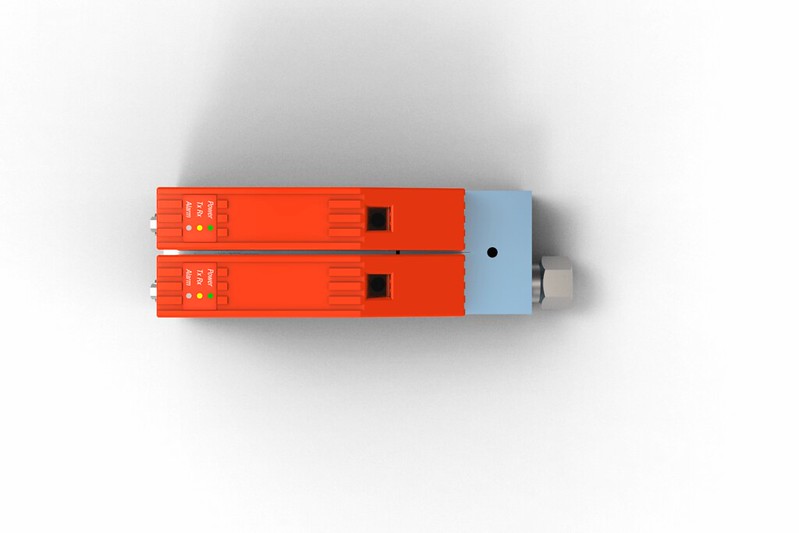

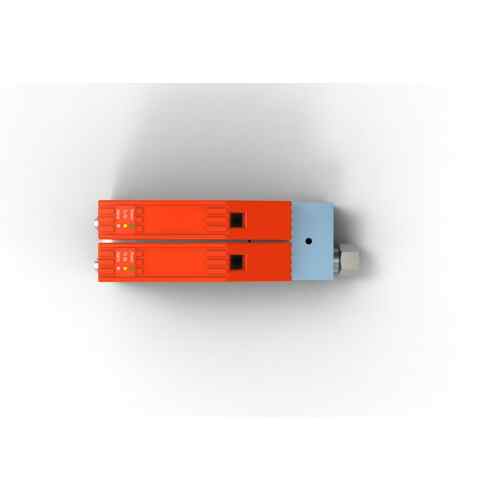

Gas Block Systems The gas collection systems allow the easy integration of different digital flow meters and controllers into one combined system.

Thermal Mass Flow Meters & Controllers for Gases with built-in display

3-Year Warranty High-quality components ensure long-term, trouble-free operation (not applicable to calibration, options and accessories).
