Variable flow meter for gases Red-Y compact

On backorder, please contact us for the expected delivery date.

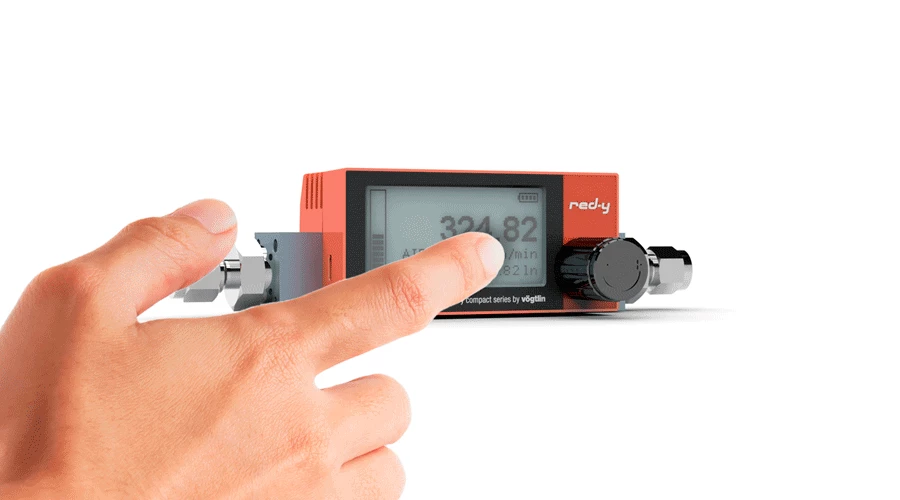

Touch technology
Independent operation

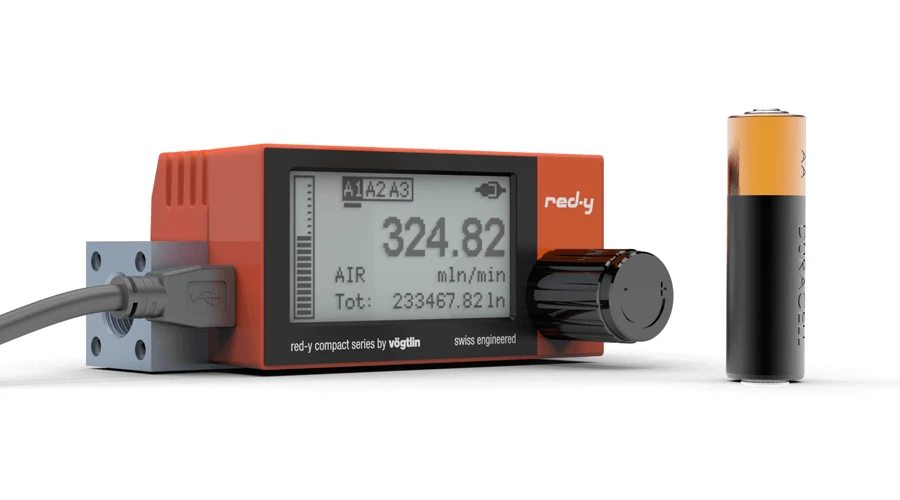

Powered by a standard AA battery or USB
accuracy to ± 1% of full scale
Turndown ratio 1: 100
Alarm function:Low alarm, high alarm, window alarm and totalizer alarm
Totalizer and password security
1 device - 3 different gases or gas mixtures
Pressure and temperature compensation
Accurate controller

Product information and datasheets →

Why buy from Sensors.nl:

Excellent rating: 96.42% had a good to very good experience
Personal customer service and advice
Extra discount possible for large quantities: Contact us

Add to quote

SKU: Red-Y compact Categories: Air-Gas Flow Meters, Variable Area Flowmeters, Vögtlin Tag: update2026

Description

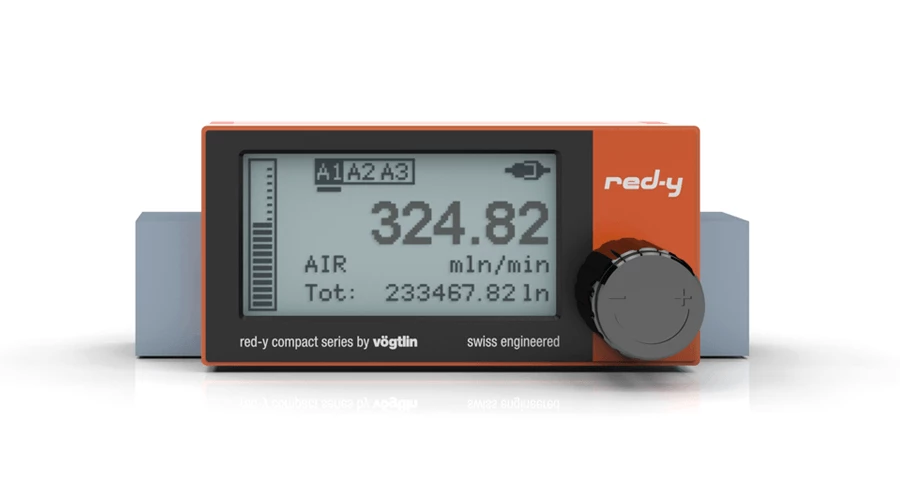

The red-y compact 2-series mass flow meters are characterized by powerful technology, intelligent functions and innovative design. The devices offer a new ease of use: compact battery-powered design, illuminated touch screen and extended alarm function. The popularity of variable area flow meters for plant and device construction continues unabated. Numerous advantages convince in practice: economical purchase, easy installation and operation, and maintenance-free.

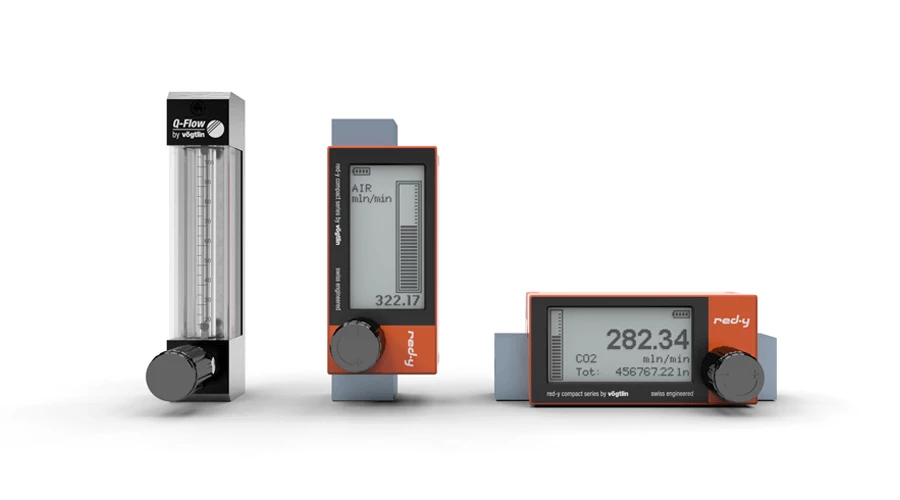

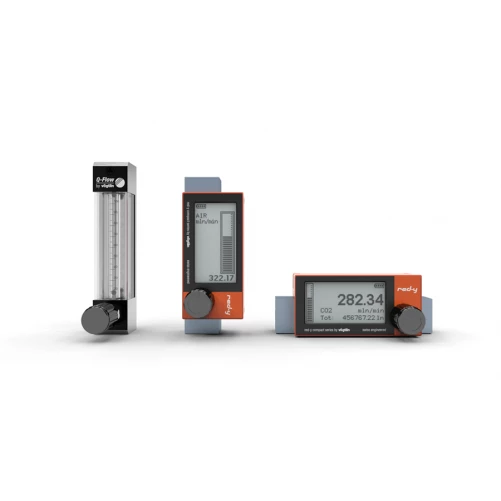

DIGITAL ADVANTAGE:
Battery powered Mass Flow Meters
red-y compact 2 series

Media	Gases
Accuracy	+/- 1% or full scale
Turndown ratio	1 : 100
Measuring ranges	from 1 mln/min up to 450 ln/min (27 SCCM - 480 SLPM)
Insensitive to pressure	YES
Insensitive to temperature	YES
Scale	Direct reading
Calibration	Real Gas
Manual Valve	YES
Totalizer	YES
Alarm functions	Integrated
Display of Reading	Touch-Display with automatic screen position adjustment
Mounting position	Any position
Supply	Battery, Mirco-USB or 24 Vdc
Body Materials	Aluminum or stainless steel
Seals	FKM or EPDM

REASONABLE AND SECURE:
Variable Area Flowmeters
Q-Flow

Media	Gases
Accuracy	+/- 5% or full scale
Turndown ratio	1 : 10
Measuring ranges	from 60 mln/min up to 50 ln/min
Insensitive to pressure	NO
Insensitive to temperature	NO
Scale	Direct reading or mm scale
Calibration	Air
Manual Valve	YES
Totalizer	NO
Alarm functions	NO
Display of Reading	Float in measuring glass
Mounting position	Vertical
Supply	Mechanical Device
Body Materials	Aluminum or stainless steel
Seals	FKM, EPDM or FFKM
