Vögtlin D-Flux Multi Series

Versatility in Functionality: The unit is available in two variants: as a meter or as a controller with a powerful integrated control valve, meeting various operational needs with seamless efficiency.

Impressive Flow Rates: With the ability to handle flow rates up to 1400 ln/min for air, and with conversion capabilities to handle gas such as hydrogen up to 2900 ln/min, it is equipped to meet demanding requirements across different gas types.

Flexibility in Gas Selection: Pre-programmed options allow up to 15 different gases to be included, making it easy to adapt to changing operational requirements.

Custom Sensor Options: Choose from three sensor options based on the specific gas being used, ensuring optimal performance and accuracy. The economical option fits gases such as air, nitrogen, oxygen and argon perfectly.

Advanced Communication: Equipped with advanced Modbus communication and analog output, along with the option for a Profinet or EtherCAT interface, it allows for seamless integration into existing systems. (Ethernet IP compatibility available soon)

Robust Construction, Wide Applications: Designed to withstand demanding environments, with an IP54 rating, it is suitable for use in temperatures from -20 to 60°C and pressures up to 14 bar, with a 316L stainless steel construction that ensures durability.

Compact Design, Maximum Efficiency: The compact design eliminates the need for long straight inlet or outlet sections, maximizing space optimization without compromising performance.

Unmatched Accuracy and Reactivity: With an accuracy of ±0.3% of the user full scale and ±0.5% of the measured value, combined with a fast sample rate of 1 ms and a total response time of 120 ms, it ensures precision and agility in gas management tasks.

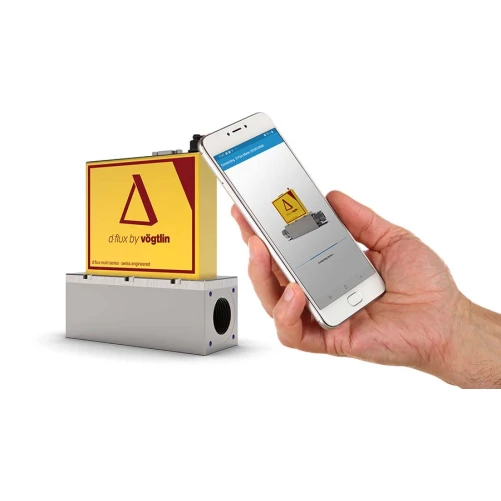

Seamless Connectivity: The Vögtlin Connect app allows you to access and configure the device wirelessly, making device management and parameter adjustment easy via Bluetooth® connectivity.

Custom Application Profiles: The device provides up to 15 application profiles, allowing the storage of specific operational parameters for different applications, streamlining setup and deployment processes.

Advanced Monitoring and Diagnostics: Integrated alarm, warning and diagnostic functions provide a comprehensive overview of device operation, accessible via the Vögtlin Connect app or Modbus interface.
