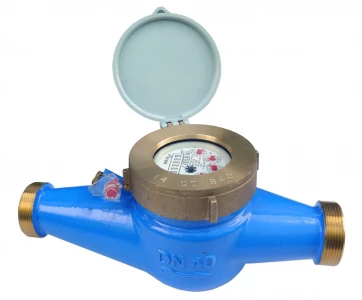

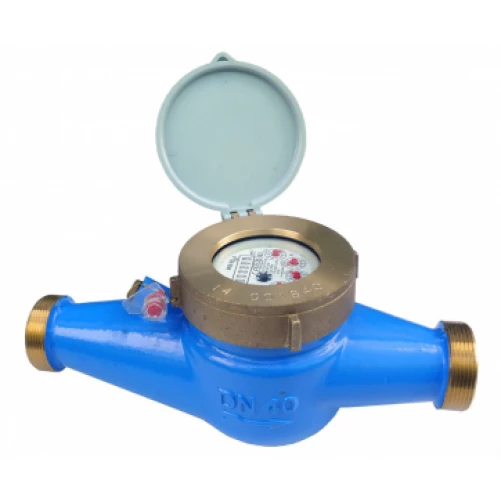

Multi-jet Cold Water Meter 1 ¼" BSP

Price range: €173,88 through €195,28

DN32 multi-jet water meter (cold)
1 1/4″ BSP fittings
Dry dial Q3 10 m3 / hour
Suitable for: Subdosing / light industrial
MID Approved R80 T30
WRAS Approved Product
Nuts, tails, washers included

Productinformatie en datasheets →

Pulse output

Pipe assembly kit

Clear

Checking current stock status? Then contact us or use the live chat.

Waarom kopen bij Sensors.nl:

Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
Persoonlijke klantenservice en advies
Extra korting bij grote aantallen mogelijk: Neem contact op

Add to quote

SKU: N/B Categories: Sensors.nl, Water meters

Beschrijving

MJ-SDC-32

DN32 Multi-Jet Water Meter (cold)
1 1/4″ BSP Fittings
Dry dial Q3 10 m3 / hour
Suitable for: Submetering / Light Industrial
MID Approved R80 T30
WRAS Approved Product

This cold multi-jet water meter comes with reducer nipples and O-rings. Suitable for secondary billing tasks for water volume and light industrial metering applications. This model has a frost-resistant dial, tamper-proof mechanism and pulse output.

Applications:

- Tennant billing
- Monitoring of filter life

- Commercial building monitoring and connection to BMS

- Distribution of the municipal construction zone

- Measurement of industrial water consumption in factories and plants

Rate this product

Extra informatie

Weight	1 kg
Pulse output	No pulse (default), Reed switch Pulse output K-10, Reed switch Pulse output K=1, Reed switch Pulse output K=100
Brand	Sensors.nl
Pipe assembly kit	15 mm copper pipe adapter set, HEP20 adapters (set), Standard connection set

Downloads

Product Documents

Datasheet
