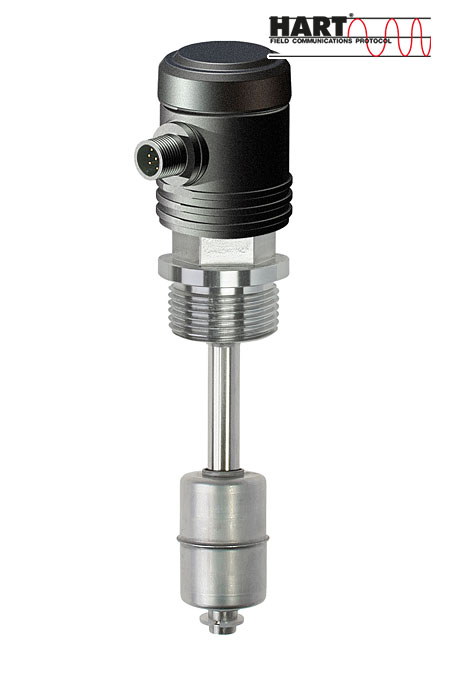

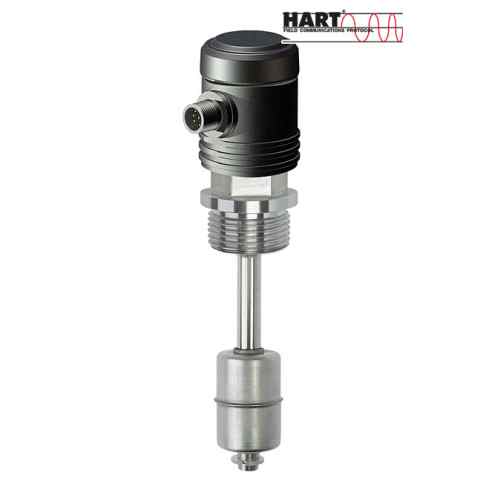

Müller Level sensor with float HART - MELS-FT

Müller Level sensor with float HART - MELS-FT

Price range: €397,55 through €524,96

Productinformatie en datasheets →

Process Connection

Tube length (mm)

Output

Nutrition

Electrical connection

Clear

Checking current stock status? Then contact us or use the live chat.

Waarom kopen bij Sensors.nl:

Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
Persoonlijke klantenservice en advies
Extra korting bij grote aantallen mogelijk: Neem contact op

SKU: MELS-FT Categories: Electronic level switches, Müller IE, Level gauges, Level measurement, Smoother Tag: update2026

Beschrijving

Technical characteristics:

Measuring element: stainless steel float
Pots: electronics fully potted
Material: in contact with medium stainless steel 1.4571
Process connection: 1", 1.5", 1" NPT
Output: 4 ... 20 mA HART
Configuration: software
Electrical connection: sideways, upward
Connection: M12, Super Seal, Deutsch, Bayonet, valve, cable
Protection: at least IP65

Rate this product

Extra informatie

Weight	1 kg
Process Connection	1" NPT, G1.5", G1", G3/4" (for float 24 mm)
Brand	Müller IE
Tube length (mm)	100, 150, 200, 250, 300, 400, 450, 500
Output	4 ... 20 mA HART
Nutrition	24 V DC
Electrical connection	M12x1, 4-pole, M12x1, 5-pole

Downloads

Product Documents
