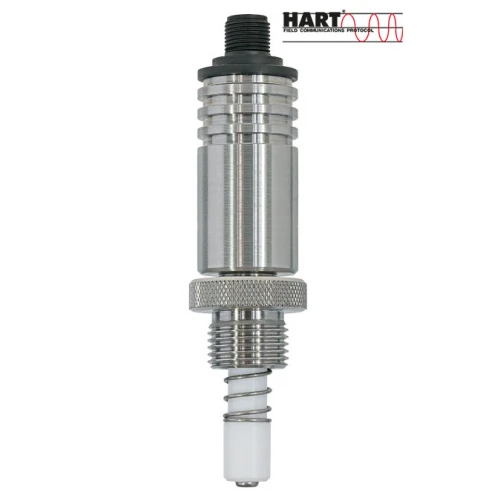

Müller Modular temperature sensor with spring HART MK

Müller Modular temperature sensor with spring HART MK

Price range: €148,64 through €210,57

Productinformatie en datasheets →

Output

Process Connection

Electrical connection

Range (°C)

Tube length (mm)

Clear

Checking current stock status? Then contact us or use the live chat.

Waarom kopen bij Sensors.nl:

Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
Persoonlijke klantenservice en advies
Extra korting bij grote aantallen mogelijk: Neem contact op

SKU: MKI - MKK Categories: Plug-in passive, Müller IE, Recorders active, Recorders passive Tag: update2026

Beschrijving

technical features

Sensor: RTD Pt 100, Pt 1000, 2-, 3-, 4-wire
Protection: Inside completely potted
Material:Protecting tube and body stainless steel 1.4571
Process connection: 3/8″, 1/2″, 3/4″
Option: transmitter 4...20 mA HART
Settings: configurable with software
Connection: MIL, valve, M12x1, cable, Super Seal, Deutsch, Bayonet
Protection: at least IP 65

5/5 - (1 stemmen)

Extra informatie

Weight	1 kg
Brand	Müller IE
Output	4 ... 20 mA HART, Pt100 2-wire, Pt100 3-wire
Process Connection	G1/2", G3/4", G3/8"
Electrical connection	Cable 2 mtr. PUR, M12x1, 4-pole, M12x1, 5-pole
Range (°C)	-40 ... 125, 0 ... 100, 0 ... 200, 0 ... 50, Other range
Tube length (mm)	45, 65, Other length
