Explosieveilig
IO-link

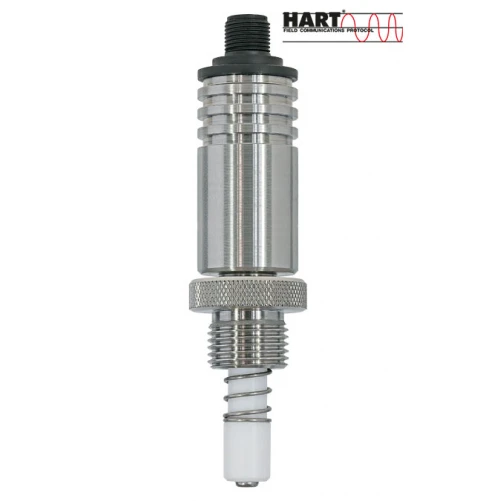

technical features
- Sensor: RTD Pt 100, Pt 1000, 2-, 3-, 4-wire
- Protection: Inside completely potted
- Material: Protecting tube and body stainless steel 1.4571
- Process connection: 3/8″, 1/2″, 3/4″
- Option: transmitter 4…20 mA HART
- Settings: configurable with software
- Connection: MIL, valve, M12x1, cable, Super Seal, Deutsch, Bayonet
- Protection: at least IP 65
| Gewicht | 1 kg |
|---|---|
| Merk | Müller IE |
| Uitgang | 4 … 20 mA HART, Pt100 2-draads, Pt100 3-draads |
| Procesaansluiting | G1/2", G3/4", G3/8" |
| Elektrische aansluiting | Kabel 2 mtr. PUR, M12x1, 4-polig, M12x1, 5 polig |
| Bereik (°C) | -40 … 125, 0 … 100, 0 … 200, 0 … 50, Ander bereik |
| Tube lengte (mm) | 45, 65, Andere lengte |
Product Documents
Data sheet
