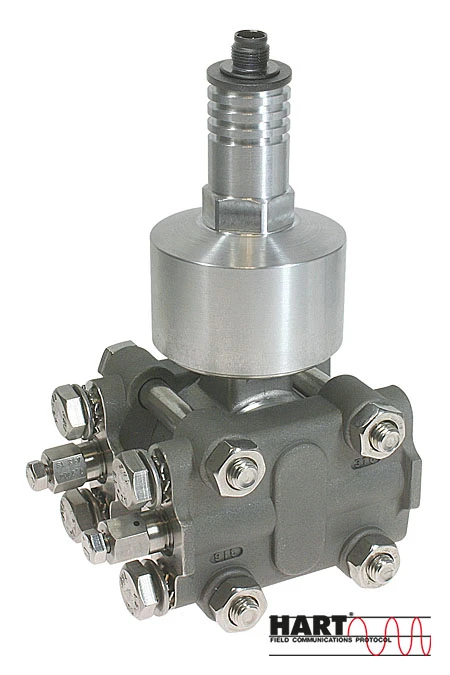

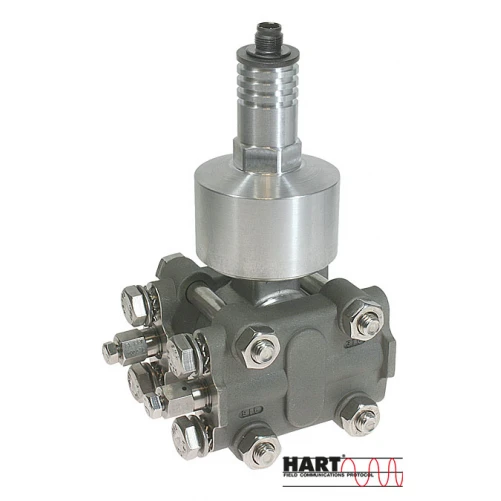

Müller Heavy Duty Differential Pressure Transmitter MKDS

Müller Heavy Duty Differential Pressure Transmitter MKDS

Price range: €811,38 through €903,58

Productinformatie en datasheets →

Pressure range (mBar)

Output

Electrical connection

Nutrition

Clear

Checking current stock status? Then contact us or use the live chat.

Waarom kopen bij Sensors.nl:

Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
Persoonlijke klantenservice en advies
Extra korting bij grote aantallen mogelijk: Neem contact op

SKU: MKDS Categories: Differential pressure transmitters air side, Differential pressure transmitters NAT-NAT, Müller IE Tag: update2026

Beschrijving

technical characteristics

Differential pressure
Ranges from 75 mbar to 70 bar
Output: 4 ... 20 mA HART
Supply voltage: current loop, 12 ... 30VDC
Accuracy: 0.1%, 0.075%, 0.2% of range
Protection rating: IP65
Medium contact parts stainless steel 1.4435
Process connection 1 / 4-18NPT
Decrease to 100: 1

Rate this product

Extra informatie

Weight	1 kg
Brand	Müller IE
Pressure range (mBar)	0 ... 10 (turn down 1:50), 0 ... 20000 (turn down 1:100), 0 ... 2500 (turn down 1:100), 0 ... 400 (turn down 1:100), 0 ... 60 (turn down 1:100)
Output	4 ... 20 mA HART
Electrical connection	M12x1, 4-pole, M12x1, 5-pole
Nutrition	12 ... 30 VDC

Downloads

Product Documents

Documents
