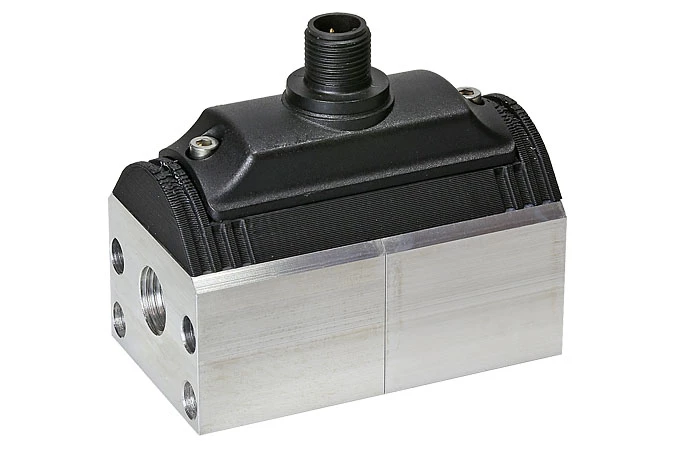

Modular universal differential pressure transmitter for liquids and gases

Modulaire universele drukverschiltransmitter voor vloeistoffen en gassen - Image 2

Modulaire universele drukverschiltransmitter voor vloeistoffen en gassen - Image 3

Modular universal differential pressure transmitter for liquids and gases

Modulaire universele drukverschiltransmitter voor vloeistoffen en gassen - Image 2

Modulaire universele drukverschiltransmitter voor vloeistoffen en gassen - Image 3

Modular universal differential pressure transmitter for liquids and gases

On backorder, please contact us for the expected delivery date.

Product information and datasheets →

Why buy from Sensors.nl:

Excellent rating: 96.42% had a good to very good experience
Personal customer service and advice
Extra discount possible for large quantities: Contact us

SKU: MUDS / DP transmitter Categories: Differential pressure transmitters air side, Differential pressure transmitters NAT-NAT, Müller IE Tags: differential pressure transmitter | MUDS, update2026

Description

Input: Differential pressure (delta P)
Range: 0 ... 1 Bar to 10 Bar, other ranges on request
Output: 4...20 mA / 0...10 VDC
Supply voltage: 9...35 VDC / 12...35 VDC / 12...24 VAC
Accuracy: see technical data
Process connection: 2x 1/4″ connection (VA inserts)
Medium: liquids and gases
Electrical connection: multiple plugs / cable
Temperature range: -40...+80 °C (in operation)
Configuration: Software
Housing material: PBT GF 30 / 1.4571 / aluminum (anodized)
Protection class: at least IP65
