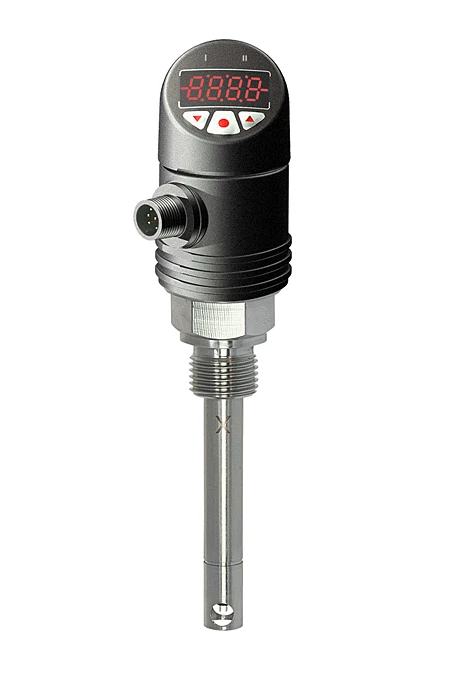

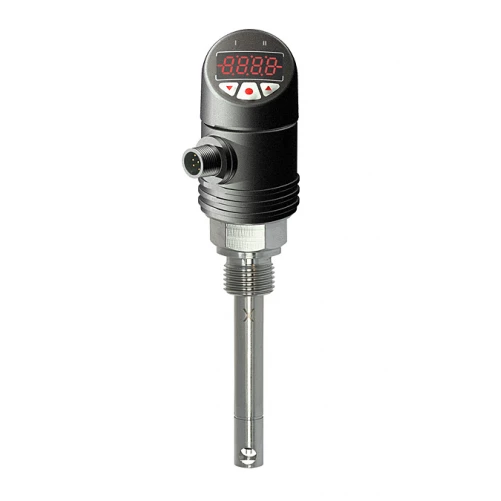

Müller Calorimetric flow sensor for gases MEFS-K

Müller Calorimetric flow sensor for gases MEFS-K

€616,64 (€746,13 incl. VAT)

On backorder, please contact us for the expected delivery date.

Type: OU1133-100-000
Process connection: G1/2″ BSP
Insertion length: 100 mm (other length on request)
Input: 0 ... 10 m / s to 0 ... 30 m / s
Output: 4 ... 20 mA
Limit contacts: 2x PNP, 30 V, 200 mA (standard)
Power supply: 24 VDC
Electrical connection: M12x1 8 pole (other connections on request)
Temperature range: 0 ... + 60 ° C (ambient)
Protection: at least IP65/67

Product information and datasheets →

Available on backorder

Why buy from Sensors.nl:

Excellent rating: 96.42% had a good to very good experience
Personal customer service and advice
Extra discount possible for large quantities: Contact us

Categories: Air-Gas Flow Meters, Müller IE Tag: update2026

Extra information

Brand	Müller IE

Downloads

Product Documents
