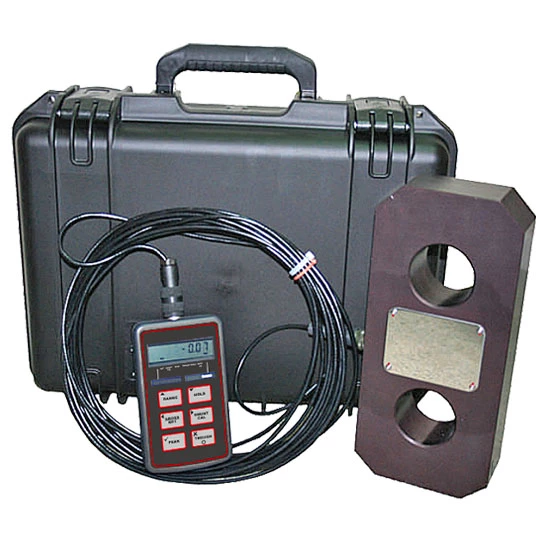

MKWZ mobile cable load cell

€1.837,50 – €2.467,50

Technical characteristics:

Measuring ranges from 1 t to 500 t
Can be used with normal lifting eyes
Input resistance 700 + -20 ohms
Operating temperature -10 ... + 80 ° C
Full-load power 1.5 (+ - 0.25%) mV / V
Accuracy <0.1% of final value
Protection class IP66 (load cell) or IP65 (hand-held display device)
robust design

Measuring range

Clear

Checking current stock status? Then contact us or use the live chat.

96.42% Has a good to very good experience with SENSORS.NL
Personalized customer service
Spacious assortment with a wide range of top brands
Need an additional discount for quantities? Please contact us

SKU: N/A Categories: Weight, Crane Scales, Müller IE

Additional information
Downloads

Weight	1 kg
Measuring range	0 ... 1 ton, 0 ... 10 tons, 0 ... 2.5 tons, 0 ... 20 tons, 0 ... 30 tons, 0 ... 5 tons
Brand

Product Documents

Datasheet
