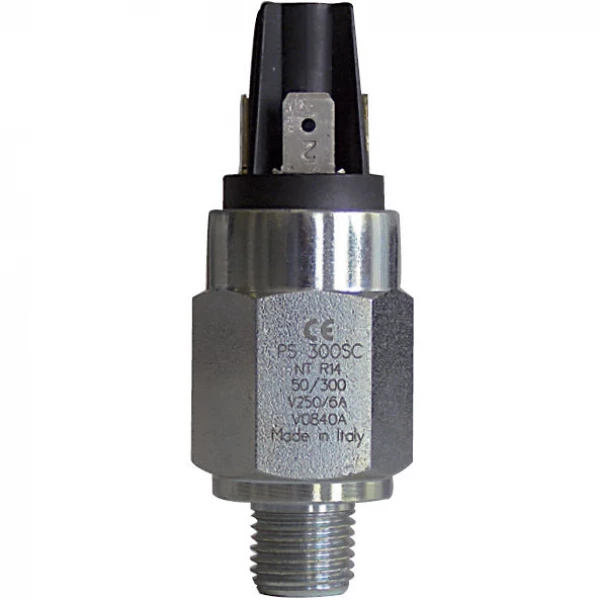

Adjustable pressure switch with SPDT contact type MS / PS

Electromechanically adjustable high voltage pressure switch (max 250 volts), SPDT contacts, electrical connection faston 6.3 x 0.8 IP00. Key hexagonal body 24. IP65 electrical protection with CP65 protective cover is supplied separately. Threaded process connections.

Switch load	6 (2) A / 250Vac 2 (1) A / 24Vdc
Electrical connection	Push-on terminals 6.3×0.8
Setting range	0.2 ... 2 bar; 1 ... 10 bar; 10 ... 50 bar; 10 ... 100 bar; 30 ... 150 bar; 50 ... 300 bar
Max. Static pressure	300 bar, 600 bar (depending on possible pressure range and body material)
Hysteresis	approx. 15% set point adjustment
Operating temperature	-30C... +140C (according to material diaphragm/piston seal)
Contact (without pressure)	SPDT
Body material	Brass - Galvanized steel - 316 stainless steel on request for all models
Diaphragm / piston seal	HNBR - FKM - Red silicone - EPDM - Neoprene - Stainless steel only for MS2 and MS10 models max pressure static 40 bar (-30C to + 40C)
Wires	Narrowing: G1 / 8 BSPT -G1 / 4BSPT -M10x1 Parallel: M12x1.5 - G1 / 4 BSPP - G1 / 8 BSPP
Protection	IP00 (terminals) IP65 (with CAP13) IP54 (with CAP16)
Mechanical life span	10 6 operations
Size	Body 24 AF Max height 57 mm
Certificates and approvals	CE
Options	Setting set point ascending Setting set point descending Gold contacts Degreasing for oxygen applications Gas test High pressure design IP67 protection Special threaded connections

Pressure range (Bar)	0,1..1, 0,2..2, 1,5..10, 15..50, 40..300, 40..80, 9..20
Overpressure max.	600, 300
Max supply	220 V
Brand	Sensors.nl
