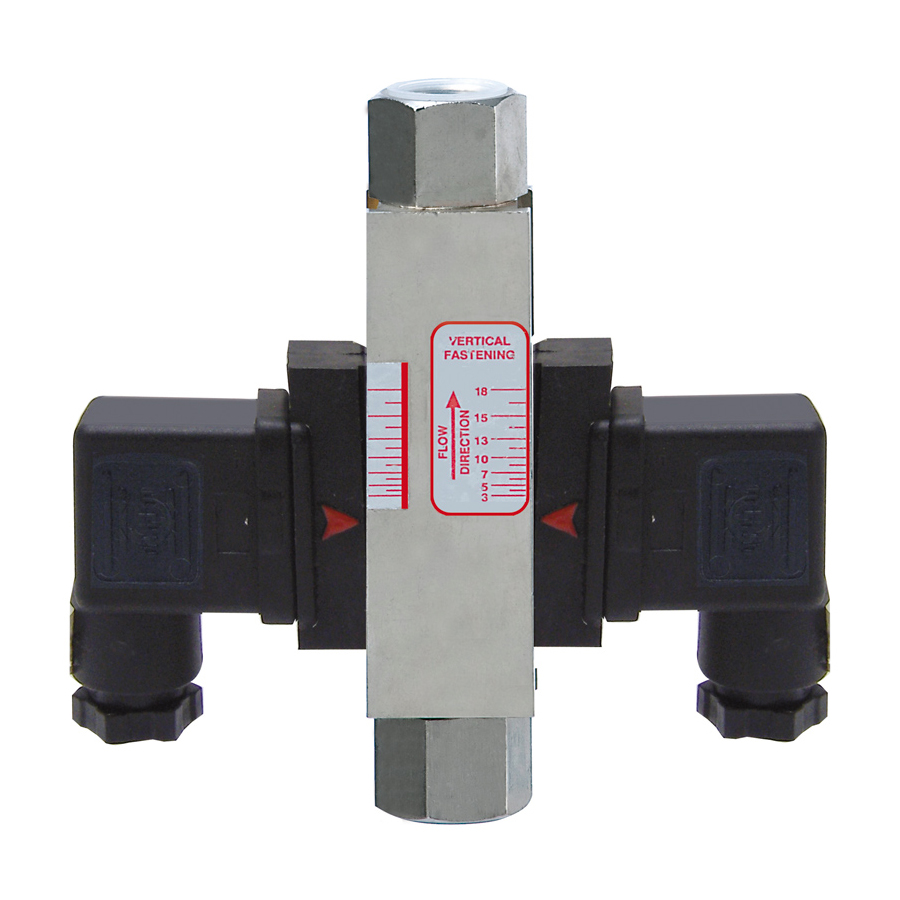

IF2E – Adjustable electric flow switches

IF2E – Adjustable electric flow switches

On backorder, please contact us for the expected delivery date.

Product information and datasheets →

Why buy from Sensors.nl:

Excellent rating: 96.42% had a good to very good experience
Personal customer service and advice
Extra discount possible for large quantities: Contact us

SKU: Item-elettrotec-52 Categories: Elettrotec, Elettrotec Tags: Elettrotec, Flow, Flow Switches and Flow Indicators

Description

Body material	Nickel plated brass
Max. operating voltage	220 V – 50 Hz
Voltage intensity	0.5 A (resistive)
Seal material	NBR
Contact	NO
Connector 2P+G	DIN 43650 form B PG09-PG11
Electrical protection	IP65
Switching voltage in DC / AC	DC 20 W – AC 20 VA
Max. flow rate	60 l/min. – H₂0
Max. pressure	80 – 100 bar
Working temperature	-10°C to +80°C
Differential	~ 45% flow rate
Threads	G1/8″ – G1/4″ – G3/8″ – G1/2″ -G3/4″ – G1″
Fastening	Vertical
