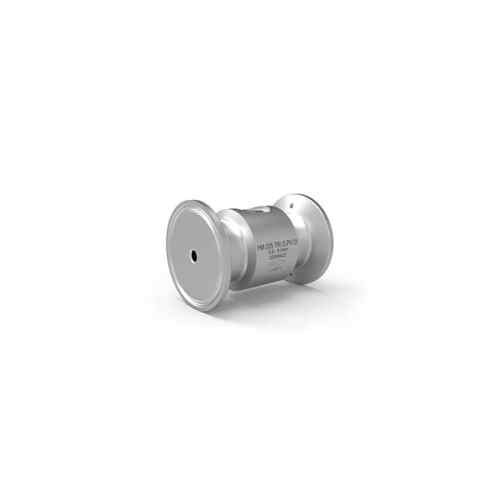

HM 030 TRI - Turbine Flow Meters for Pharmaceutical Applications - 35 up to 400 l/min.
On backorder, please contact us for the expected delivery date.
HM TRI series turbine flow meters (TRI for "Tri-Clamp" according to DIN 32676) are used for measuring continuous and discontinuous volume flows. They are mainly used in the pharmaceutical and food industries. The innovative dead space optimized design and special flush holes in the bearing ensure maximum flushability.
- Excellent rating: 96.42% had a good to very good experience
- Personal customer service and advice
- Extra discount possible for large quantities: Contact us
Description
HM TRI series turbine flow meters (TRI for "Tri-Clamp" according to DIN 32676) are used for measuring continuous and discontinuous volume flows. They are mainly used in the pharmaceutical and food industries. The innovative dead space optimized design and special flush holes in the bearing ensure maximum flushability.
Measuring Ranges 35 up to 400 l/min
Repeatability ±0.05 % (under the same conditions)
Linearity ±1 % of actual flow (viscosity 1 mm²/s)
Viscosity Range 1 mm²/s
Materials
- Housing: as per DIN 1.4404 [AISI 316 L]
- Wheels: axle per DIN 1.4460 [AISI 329].
- Bearing: PTFE
Pressure up to 10 bar [145 psi]
Medium Temperature -40 °C up to +150 °C [-40 °F up to +302 °F].
