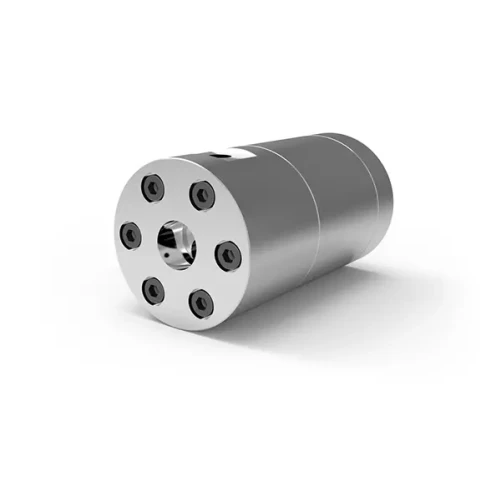

SRZ KL - Helical Flow Meters with Ball Bearing for high-viscosity, not abrasiv media - 0.4 up to 400 l/min
On backorder, please contact us for the expected delivery date.
The flow meter of the SRZ KL series (KL for ball bearing version) is a volume flow meter intended primarily for lubricating, non-abrasive fluid applications. Thanks to its concept, temperature fluctuations and the resulting change in the viscosity of the medium have only a marginal influence on the measurement accuracy of the SRZ KL.
- Excellent rating: 96.42% had a good to very good experience
- Personal customer service and advice
- Extra discount possible for large quantities: Contact us
Description
The flow meter of the SRZ KL series (KL for ball bearing version) is a volume flow meter intended primarily for lubricating, non-abrasive fluid applications. Thanks to its concept, temperature fluctuations and the resulting change in the viscosity of the medium have only a marginal influence on the measurement accuracy of the SRZ KL.
Measuring Ranges0.4 up to 400 l/min
Measuring Accuracyup to ±0.1 %
Repeatability±0.05 % (under the same conditions)
Linearityup to ±0.25 % of actual flow
Materials
- Housing: as per DIN 1.4305 [AISI 303], 1.4404 [AISI 316L]
- Helicals: as per DIN 1.4122
- Bearing: Stainless steel ball bearing
- Seals: FKM, PTFE (others on request)
Pressureup to 315 bar [4,500 psi]
Medium Temperature-40 °C up to +180 °C [-40 °F up to +356 °F] (others on request)
